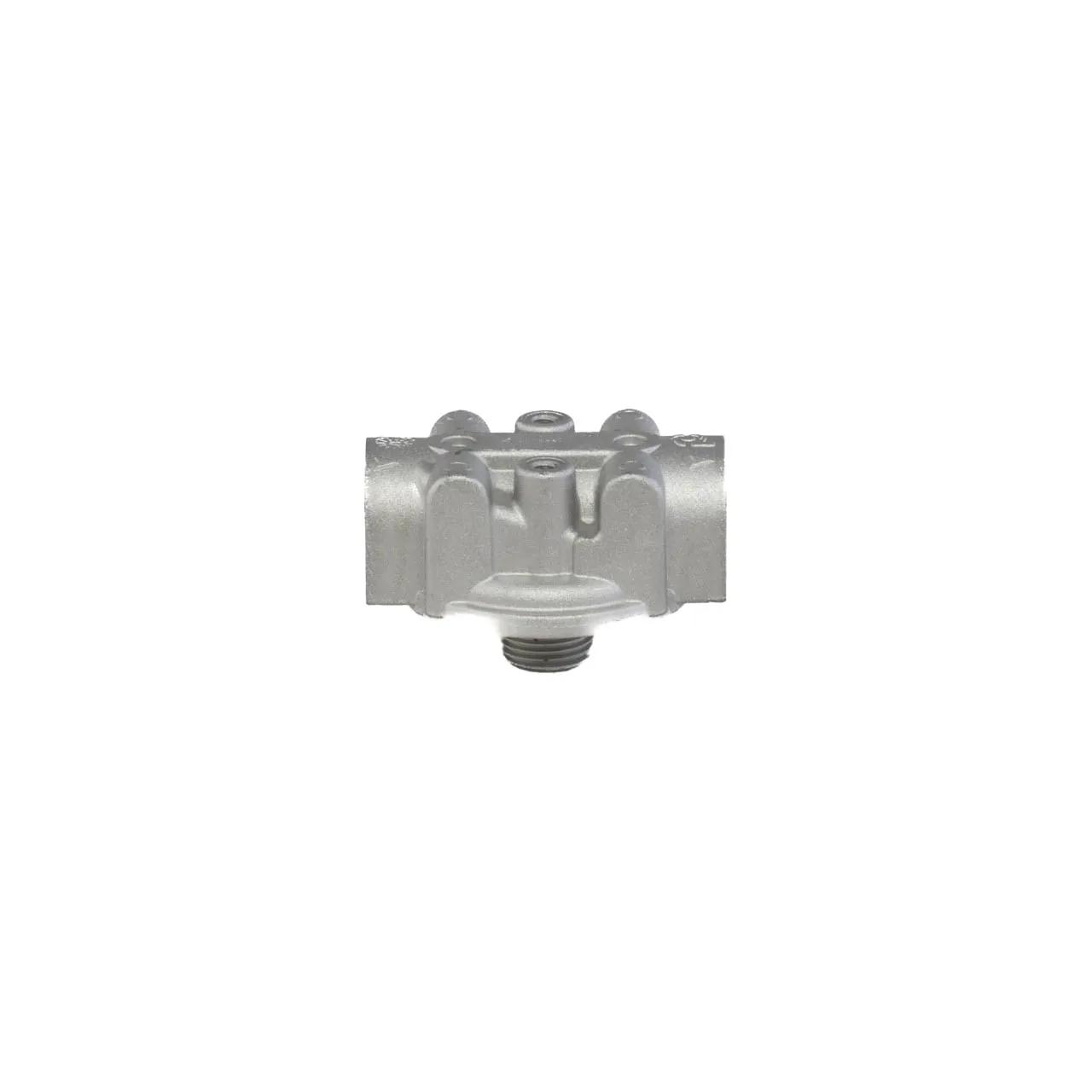

HEAD ASSEMBLY L: 3,7 in, OD: SAE-12
#DONP563279
Caractéristiques et avantages
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Spécifications
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 14.51 psi (1 bar) |
| Efficiency 95% | 30 Micron |
| Efficiency Beta 20 | 40 Micron |
| Efficiency Beta 200 (Micron) | 23 Micron |
| Efficiency Beta 20 (Micron) | 40 Micron |
| Efficiency Beta 75 | 35 Micron |
| Filter-to-Head Thread | 1-12 UN |
| Height | 2-13/32 in (6.12 cm) |
| Inlet Size | SAE-12 |
| Length | 3-45/64 in (9.4 cm) |
| Outer Diameter | SAE-12 |
| Outlet Size | SAE-12 |
| Series | SP15/25 |
| Length Range | 3 to 3.99 in |
Interchanges et pièces équivalentes:
| P563279 |
| 5053575 |
| DN P563279 |
| 053575 |
| 2191-P563279 |
| DONP563279 |
| 53575 |
