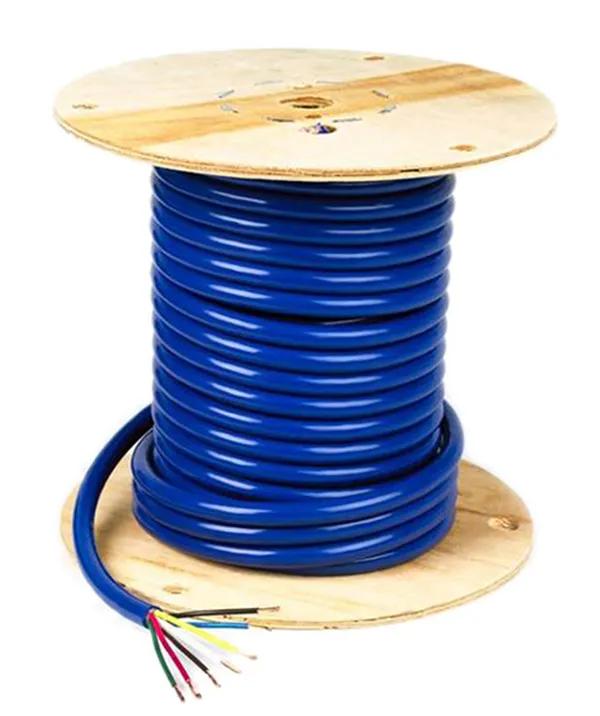

Trailer Cable, Low Temperature, 7 Conductor, 6/14 and 1/12 Gauge, 500 Ft Spool, Copper, PVC Insulation
#GRO82-5827-500
Product Overview
Grote offers low-temperature trailer cable constructed with 100% pure copper conductors and durable PVC insulation. Available in 500-foot spools, this cable features 7 wires in 6/14 and 1/12 gauge sizes, designed to provide consistent communication throughout your truck or trailer system. The cable is suitable for wiring trucks and trailers, with a jacket that protects against weather and abrasive materials.Trailer Cable, Spool, Yellow, Green, Brown, White, Red, Black, Blue, Copper Conductor, PVC Insulation, 6/14 GA, 1/12 GA Gauge, 7 Wires, 0.526 in OD, SAE J1128 Standards, -65 to 105 °C Temperature Range, 60 V, 500 ft Length
Features & Benefits
- Remains flexible in extreme temperatures -85°F to 221°F (-65°C to 105°C)
- Resistant to gasoline and oils
- UV resistant; VW-1 Rated
- Paper wrapped for ease of stripping
- Bulk spools also available - contact customer service for more information
- Used for wiring trucks and trailers; jacket provides protection from weather and abrasive materials
Specifications
| Color | Black, Blue, Brown, Green, Red, White, Yellow |
| Conductor Material | Copper |
| Gauge | 1/12 ga, 6/14 ga |
| Length | 500 ft |
| Stranding | 100% pure copper conductors |
| Temperature Range | -85°F to 221°F (-65°C to 105°C) |
| Type | Wire |
| Insulation Material | PVC |
| Jacket Material | PVC |
| Number Of Wires | 7 |
| Outside Diameter | 0.526 in |
| Package Type | Spool |
| Standards | SAE J1128 |
| Voltage Rating | 60 V |
| Product Category | Trailer Cable |
| Quantity | 1 |
Interchanges & Equivalent parts:
| 82-5827-500GRC |
| 825827500 |
| 82-5827-500 |
| 66056R |
| M271A |
