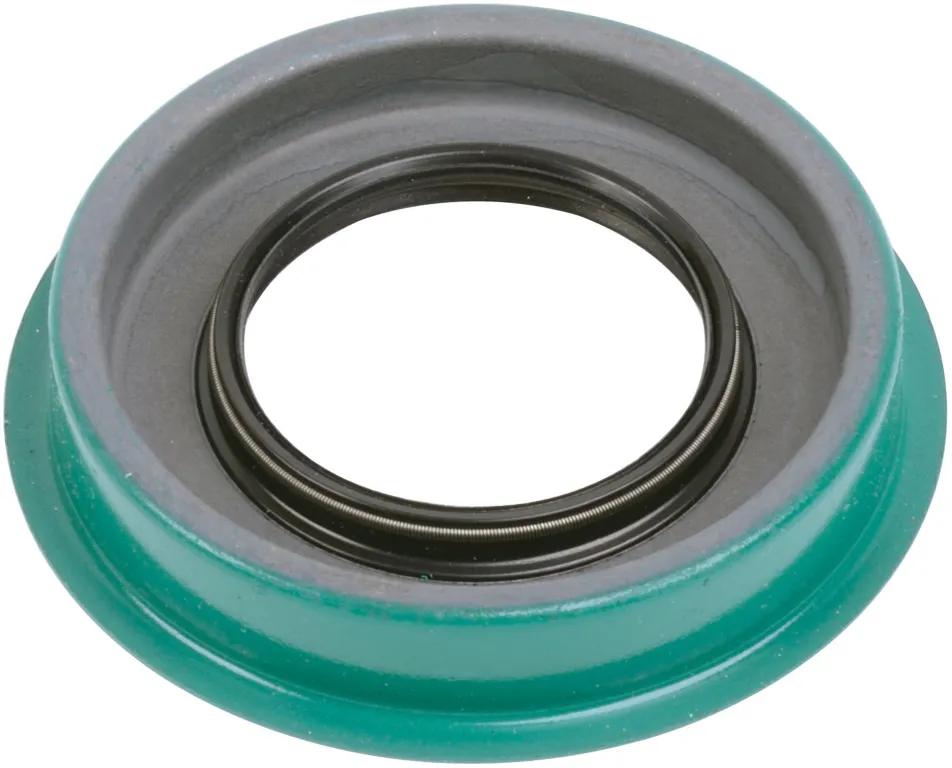

Transfer Case Front Output Shaft Seal
#SKF11778
Product Overview
Spring Loaded, Auxiliary Dirt Lip, Installation Stop Flange, w/ CW Helix From Air Side, Chemical & Abrasion Resistant Rubber, Temps From -40 Deg F To 400 Deg F
Features & Benefits
Features & Benefits
SKF11778 - Features Documents - A
SKF11778 - Features Documents - B
SKF11778 - Features Documents - C
SKF11778 - Features Documents - D
SKF11778 - Features Documents - E
SKF11778 - Features Documents - F
- Superior design ensures a precise fit, preventing dirt and water intrusion
- High-quality materials provide reliable sealing performance for optimal function
- Spring Loaded, Auxiliary Dirt Lip, Installation Stop Flange, w/ CW Helix From Air Side, Chemical & Abrasion Resistant Rubber, Temps From -40 Deg F To 400 Deg F
- Engineered for effective protection, enhancing the longevity of the transfer case
- Time Saving Design
- Designed to Extend Component Life
- Robust Strength
Specifications
| Inside Diameter | 1-11/64 in (2.97 cm) |
| Seal I.D. | 2-1/4 in (5.72 cm) |
| Seal O.D. | 2 to 2.99 in |
| Type | Grease Seal |
| Wall Thickness | 1/2 in (1.27 cm) |
| Width | 1/2 in (1.27 cm) |
Interchanges & Equivalent parts:
| 4813V |
| 4813VCR |
| 17403 |
| 11778 |
| 117781 |
| 11778CHR |
| CR11778 |
| 965811778 |
| CHR11778 |
| K4813VDR |
| 12544075 |
| 1385086 |
| NS4813V |
| 4132294100 |
| 27SS2294 |
| 59011778 |
| X11778 |
