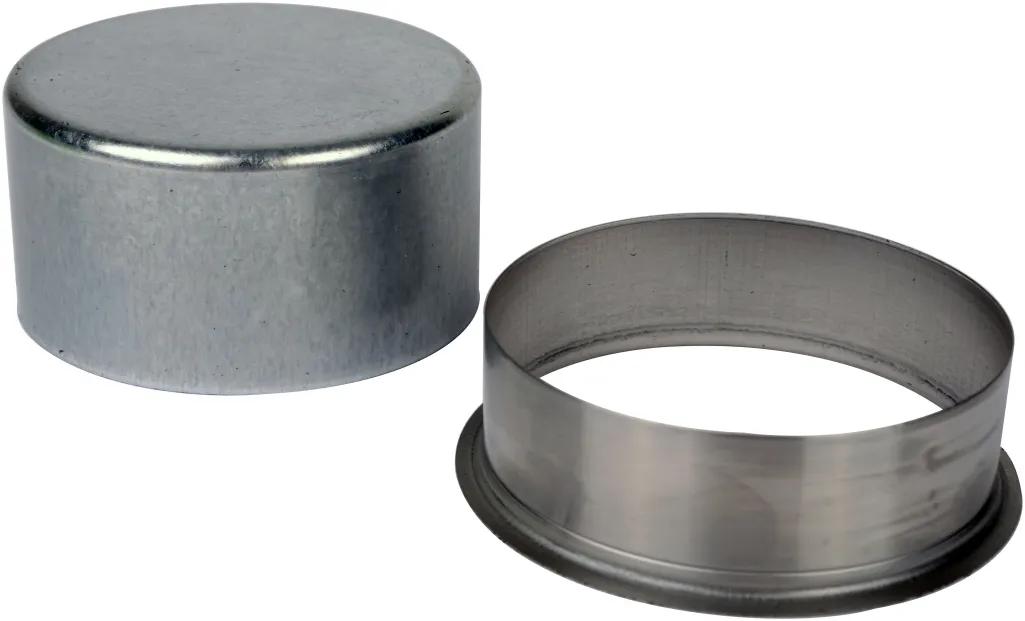

Transfer Case Shift Shaft Speedi-Sleeve
#SKF99059
Sommaire du produit
Our Speedi Sleeves Repair Scored to Restored in a Few Minutes With a Few Easy Steps With No Special Tooling.
Caractéristiques et avantages
Caractéristiques et avantages
SKF99059 - Documents de caractéristiques - A
SKF99059 - Documents de caractéristiques - B
SKF99059 - Documents de caractéristiques - C
SKF99059 - Documents de caractéristiques - D
SKF99059 - Documents de caractéristiques - E
- Although Installation is Simple, it Should be Done Carefully to Achieve the Best Results.
- Before Starting, the Sealing Zone of the Shaft Should be Carefully Cleaned and Any Burrs or Rough Spots Should be Filed Down and Polished.
- Deep Wear Grooves, Scratches or Very Rough Surfaces Should be Treated With a Suitable Powdered Metal Epoxy Filler.
- The Sleeve Must be Positioned on the Shaft Before the Filler Has Hardened.
- It Should Also be Noted that Although Speedi Sleeves Can be Easily Installed Within Minutes on Most Shafts.
- They Should NOT Be Placed Over Splines or Keyways, etc on the Shaft.
- Commonly Used on End Yokes, Input/Output Shafts, Crankshafts, Camshafts, Accessory Drive Shafts, or Wherever Needed to Alleviate Additional Costs and Downtime.
- A Mallet or Rubber Hammer is Commonly Used to Drive the Sleeve on the Shaft With an Enclosed Driver Tool.
- Instructions Included With Most All of Our Speedi Sleeves.
- Manufactured to Meet or Exceed O.E.M. Specifications in Function, Form & Fit.
Spécifications
| Compatible avec le diamètre de l'arbre | .589 in. To .593 in. / 14.96 mm To 15.06 mm |
| Diamètre de bride | 3/4 in (1.91 cm) |
| Épaisseur | 13/64 in (0.51 cm) |
Interchanges et pièces équivalentes:
| 145899059 |
| CR99059 |
| 965899059 |
| 99059 |
| 99059CHR |
| 99059RS |
| CHR99059 |
| N99059 |
| ZAR99059 |
| 4135419100 |
| 27SR5419 |
