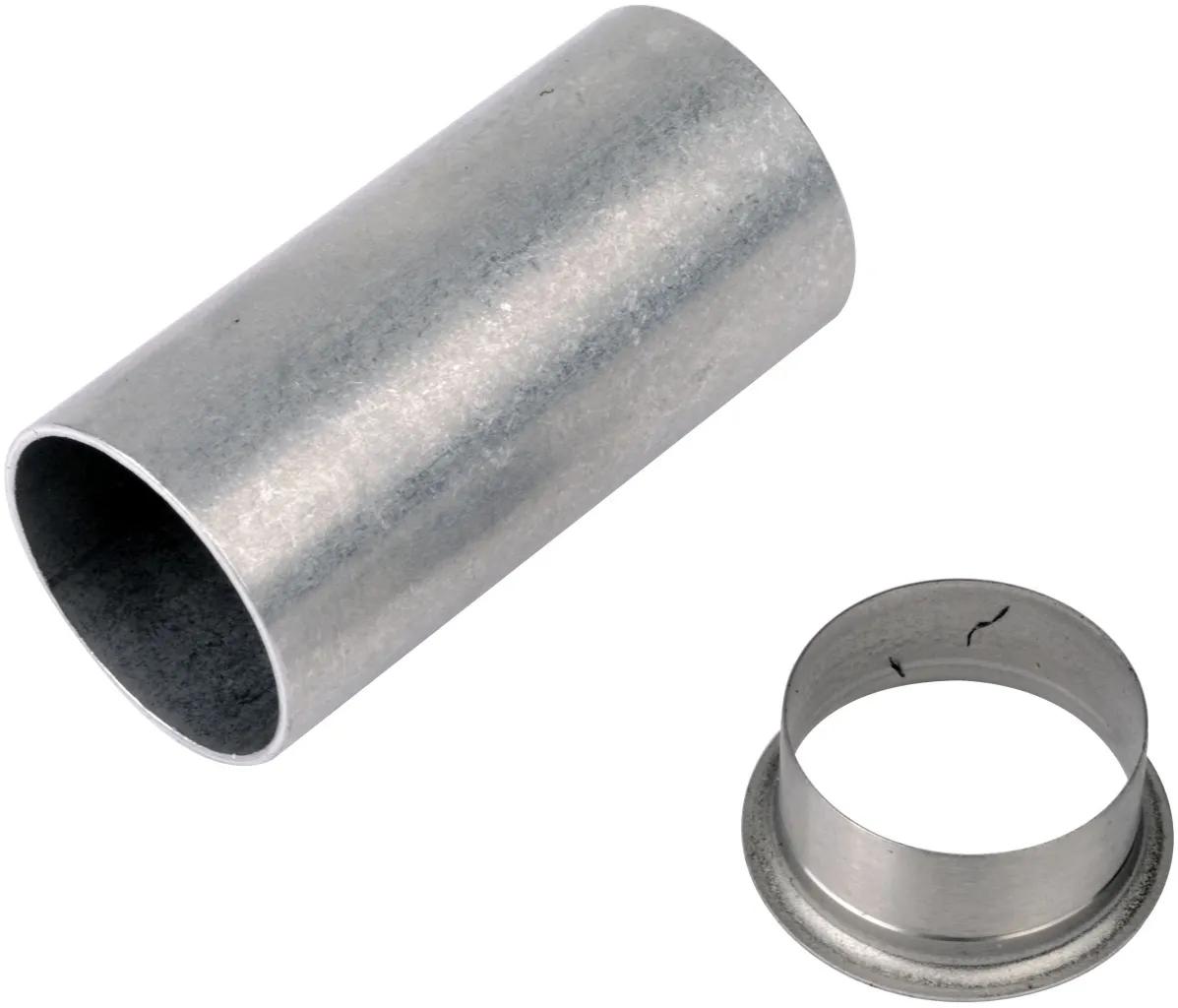

Transfer Case Shift Shaft Speedi-Sleeve
#SKF99087
Sommaire du produit
Our Speedi Sleeves Repair Scored to Restored in a Few Minutes With a Few Easy Steps With No Special Tooling.
Caractéristiques et avantages
Caractéristiques et avantages
SKF99087 - Documents de caractéristiques - A
SKF99087 - Documents de caractéristiques - B
SKF99087 - Documents de caractéristiques - C
SKF99087 - Documents de caractéristiques - D
SKF99087 - Documents de caractéristiques - E
- Although Installation is Simple, it Should be Done Carefully to Achieve the Best Results.
- Before Starting, the Sealing Zone of the Shaft Should be Carefully Cleaned and Any Burrs or Rough Spots Should be Filed Down and Polished.
- Deep Wear Grooves, Scratches or Very Rough Surfaces Should be Treated With a Suitable Powdered Metal Epoxy Filler.
- The Sleeve Must be Positioned on the Shaft Before the Filler Has Hardened.
- It Should Also be Noted that Although Speedi Sleeves Can be Easily Installed Within Minutes on Most Shafts.
- They Should NOT Be Placed Over Splines or Keyways, etc on the Shaft.
- Commonly Used on End Yokes, Input/Output Shafts, Crankshafts, Camshafts, Accessory Drive Shafts, or Wherever Needed to Alleviate Additional Costs and Downtime.
- A Mallet or Rubber Hammer is Commonly Used to Drive the Sleeve on the Shaft With an Enclosed Driver Tool.
- Instructions Included With Most All of Our Speedi Sleeves.
- Manufactured to Meet or Exceed O.E.M. Specifications in Function, Form & Fit.
Spécifications
| Compatible avec le diamètre de l'arbre | .873 in. To .877 in. / 22.18 mm To 22.28 mm |
| Diamètre de bride | 1-3/32 in (2.77 cm) |
| Épaisseur | 7/16 in (1.12 cm) |
| Code VMRS | 22003088 |
Interchanges et pièces équivalentes:
| 2EH52 |
| 5P6159 |
| 6353817 |
| 145899087 |
| CR99087 |
| 965899087 |
| 99087 |
| 99087CHR |
| 99087RS |
| CHR99087 |
| N99087 |
| NN99087 |
| ZAR99087 |
| 27SR3457 |
| 4133457100 |
| KWK99087 |
| P99087 |
