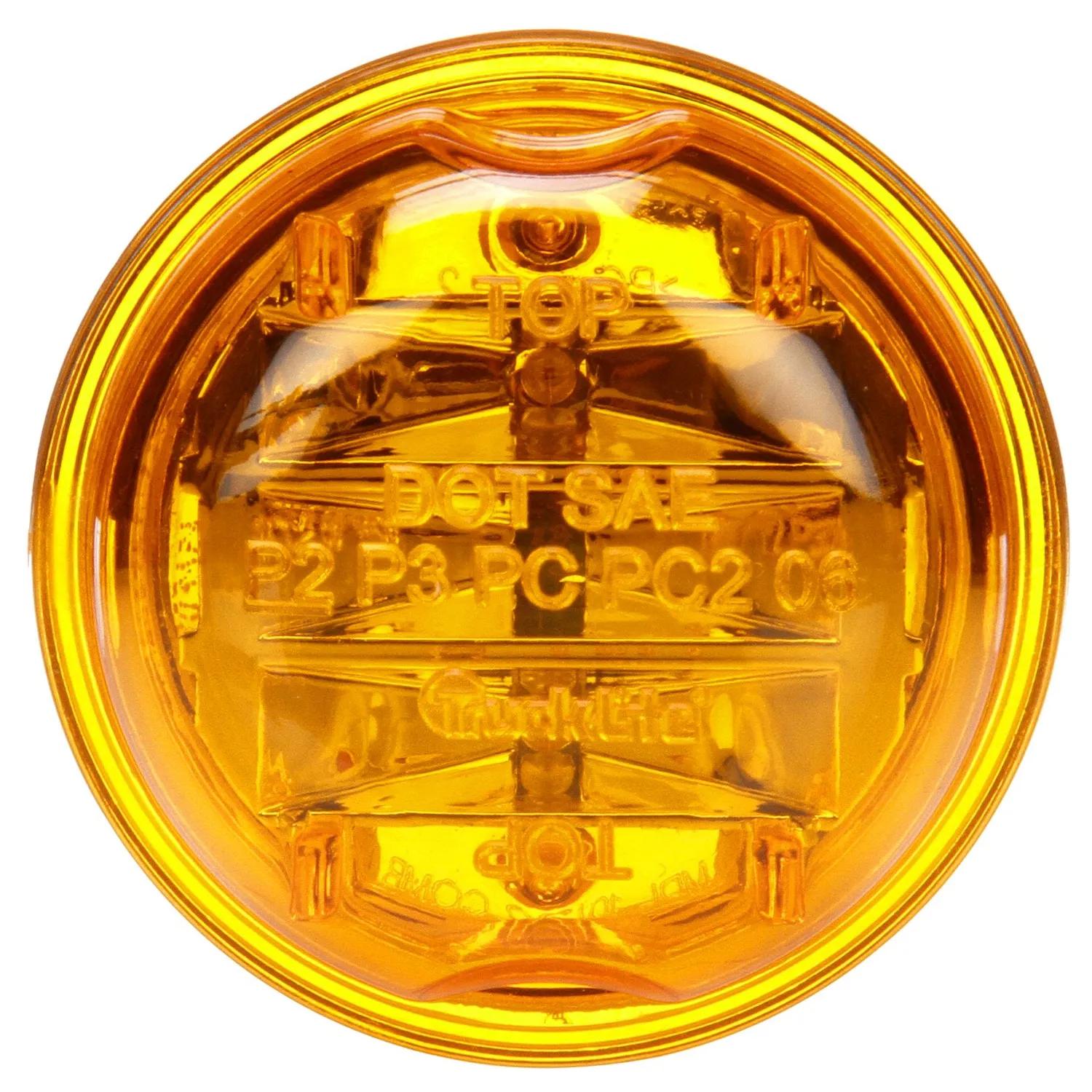

Truck-Lite 30 Series High Profile LED Marker Clearance Light, 8 Diode, Round, Amber/Yellow, Polycarbonate, Fit 'N Forget M/C, 12V
#TRL30375Y
Product Overview
30 Series high profile LED marker clearance light featuring 8 diodes in a round amber/yellow polycarbonate lens. Designed with Fit 'N Forget M/C connection for easy installation. SAE PC rated for combined marker and clearance applications. Durable, sealed design protects against shock and vibration. Operates at 12V with low current draw, enhancing battery and alternator life.Marker Clearance Light, 8 Diode, High Profile, LED Bulb, Fit 'N Forget M/C, Grommet, Polycarbonate, Yellow, 2.24 in H, 0.1 in L, Light Function: P2, P3, PC, 30 Series, Round, 12 V, Warranty: Limited Lifetime, 2.24 in W
Features & Benefits
- SAE PC Rated, allowing combined marker & clearance applications
- High-Profile design increases light output and improves visibility of vehicle. Most Advanced and cost effective 2" Marker & Clearance light on the market.
- Designed with LED lighting technology providing optimal light output and sealed design further protecting against damage from shock and vibration.
- No filament design reduces susceptibility to shock and vibration, resulting in less current draw and increased battery and alternator life.
Specifications
| Bulb Type | LED |
| Color | Amber |
| Common Size | 2 in |
| Connection Type | Fit 'N Forget M/C |
| Contents | Marker Clearance Light |
| Diamond Shell (Y/N) | No |
| Height | 2-15/64 in |
| Kit (Y/N) | No |
| Length | 2 in |
| Lens Color | Yellow |
| Lens Material | Polycarbonate |
| Material | Polycarbonate |
| Mounting Type | Grommet |
| Mount Type | Grommet Mount |
| Number Of Wires | 2 |
| Plug Side One | Fit 'N Forget |
| Plug Side Two | No Plug |
| Quantity | 5 |
| Reflectorized (Y/N) | No |
| Shape | Round |
| Standards | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | LED |
| Type | Marker Clearance Light |
| UPC | 735111065845 |
| VMRS Code | 034-004-253 |
| Volt | 12V |
| Voltage Rating | 12 V |
| Warranty | Limited Lifetime |
| Weight | 0.12 lb |
| Width | 2-15/64 in |
| Current Rating | 0.1 amp |
| Light Function | P2, P3, PC |
| Product Line | 30 Series |
| Product Category | Marker Clearance Light |
Interchanges & Equivalent parts:
| 41312588 |
| 30375Y |
| 5351537620 |
| 841330375Y |
| 705201736 |
| 70521736 |
| TL30375Y |
| TLD30375Y |
| 8413-30375Y |
| LIT30375Y |
| TL 30375Y |
| TL 30375Y |
| 30375YTLT |
| TKL30375Y |
