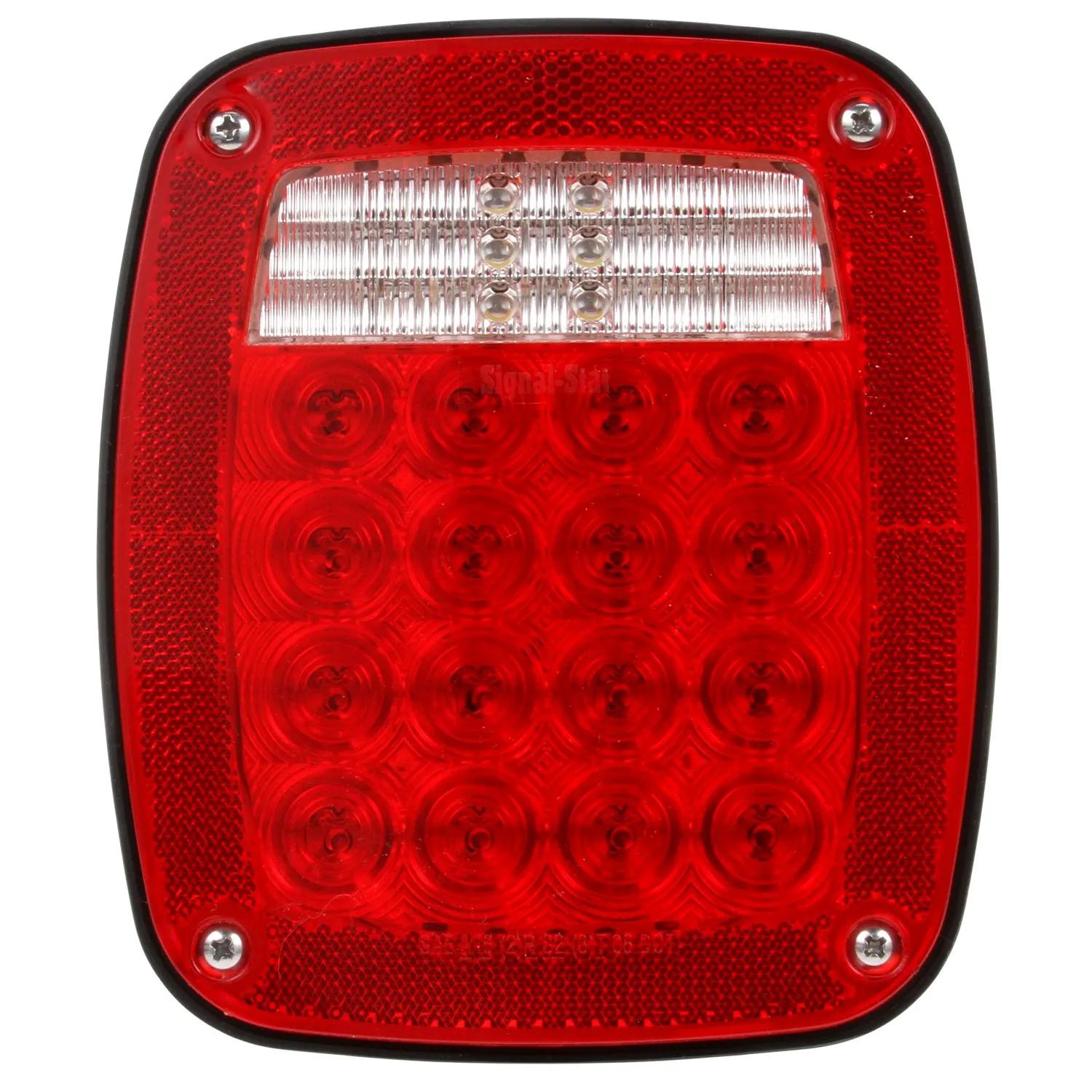

Truck-Lite Signal-Stat Combination Stop/Tail/Turn Box Light, Right Hand Side, LED, Red & White Acrylic Lens, Hardwired, 12V

#TRL5071

Product Overview

Truck-Lite Signal-Stat combination stop, tail, and turn box light featuring a red and clear acrylic lens. Designed for the right-hand side, this LED lamp is hardwired with a 3-stud mounting system and stripped end connections. It operates at 12 volts and offers multiple lighting functions including stop, turn, tail, clearance, back-up, and license. The rectangular shape and durable acrylic lens provide reliable performance and enhanced visibility. This product includes a 2-year warranty and meets FMVSS 108, DOT, and SAE standards.Combination Box Light, Signal-Stat, Right Hand Side, LED Bulb, Hardwired, 3 Stud, Acrylic, Black, Red/Clear, 2.9 in H, 6.73 in L, Light Function: I6, R, A, L, S2, T, Rectangular, 12 V, Warranty: 2 Years, 5.79 in W

Features & Benefits

Upgrade your vehicle to LED technology, allowing significant return on your investment. LEDs have no filament, making them resistant to shock and vibration.

LEDs have lower current draw, increasing battery and alternator life while allowing more power for other vehicle requirements.

Faster illumination offers a significant safety benefit, providing an average 3 reaction time advantage for every 10 mph.

Grommet provides improved water resistance between the lamp and wiring.

Features stop, turn, tail, clearance, back-up, and license functions.

Three stud mounting design with ground function.

2-Year warranty.

Specifications

Bulb Type	DEL
Connection Type	Câblé
Contents	Lampe multifonction
Depth	2-29/32 in
Height	2.9 in
Housing Color	Black
Length	6.73 in
Lens Color	Red/Clear
Lens Material	Acrylic
Material	Acrylic
Mounting Type	Stud
Position	Right
Product Type	Combination Stop/Tail/Turn Light
Quantity	1
Series	Signal-Stat
Shape	Rectangular
Standards	FMVSS 108, DOT, SAE
Type	Signal-Stat, Right Hand Side
UPC	735111184867
VMRS Code	034-002-013
Voltage Rating	12 V
Warranty	2 Years
Weight	1.02 lb
Width	5.79 in
Current Rating	0.14 amp (major), 0.06 amp (minor)
Features	LED technology, resistant to shock and vibration, lower current draw, faster illumination, grommet for water resistance, stop/turn/tail/clearance/back-up/license functions, three stud mounting with ground function
Light Function	Stop, Turn, Tail, Clearance, Back-up, License
Product Category	Combination Box Light
