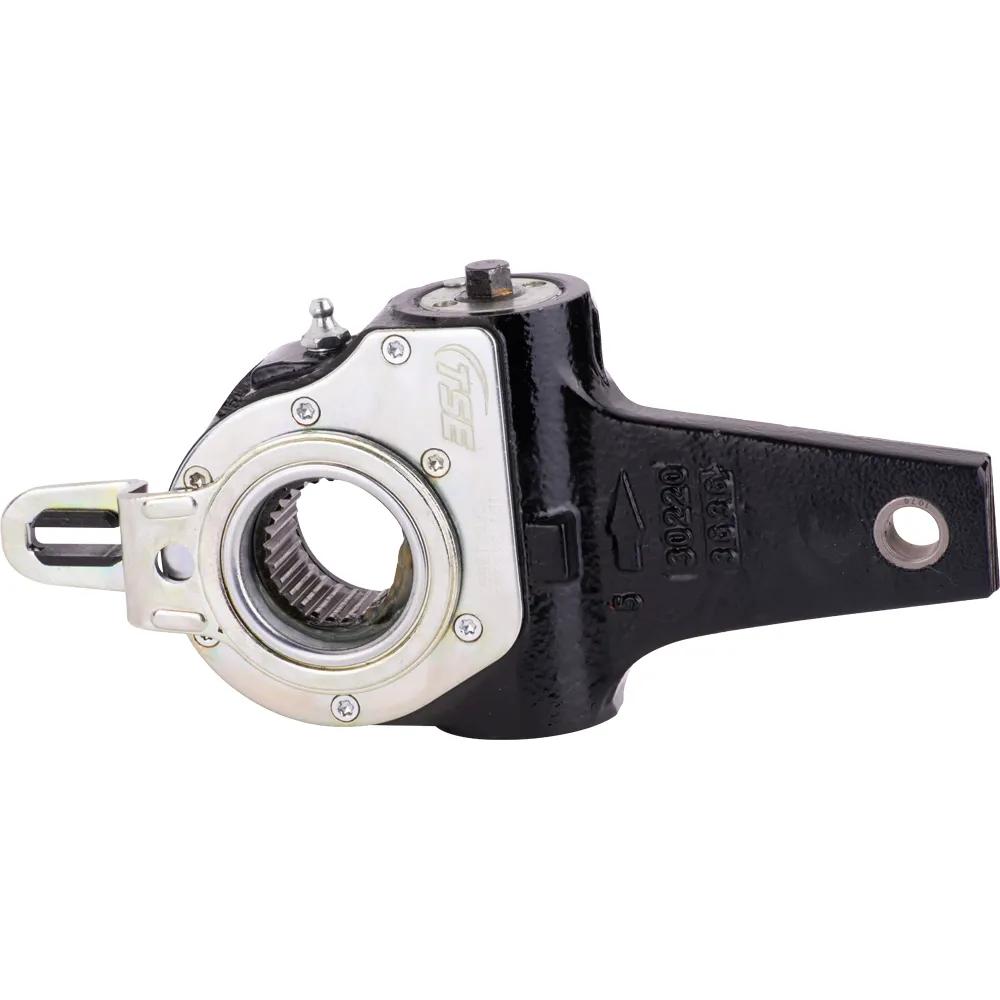

TSE Brakes, S-ASA Automatic Slack Adjuster, 1-1/2 in - 28 Spline, 1/2 Bushing, 5-1/2 in Arm Length, Trailer Application
#TSE07135
Product Overview
TSE offers a complete line of automatic slack adjusters featuring the proven clearance sensing design and patented self-setting technology. Manufactured in a TS16949 certified factory, these heavy duty slack adjusters deliver reliable, long-lasting performance for line haul tractors, trailers, severe duty, transit, and motor coach applications. TSE's premium adjusters continuously and automatically compensate for lining and drum wear, optimizing braking performance and component life.S-ASA Slack Adjuster, S-Cam Brake, 5-1/2 in Arm Length, Automatic Automatic or Manual, 10 Splines, For Drive
Features & Benefits
- Extensive Testing - manufactured to highest quality standards with metallurgical and stress analysis testing, exceeding SAE J1462 requirements
- Patented Over Greasing Valve Maintains Integrity of Seals
- Built to Last - strengthened housing reduces wear and corrosion; worm shaft processed for increased fatigue strength; dependable O-rings and gaskets keep out moisture and contaminants for longer service life
- Proven Clearance Sensing Design - continuously and automatically adjusts to compensate for lining and drum wear, featuring a unique clutch and worm wheel design for optimal braking performance and component life
- A Slack Adjuster for All Applications - suitable for over-the-road tractors and trailers, severe duty applications such as cement, refuse, and logging, as well as intra-city transit buses and intercity motor coaches
Specifications
| Angle | 0 deg |
| Application | Trailer |
| Arm Length # 1 | 5-1/2 |
| Automatic or Manual | Automatic |
| Brake Size | 16-1/2 in |
| Brake Surface Diameter | 16-1/2 in |
| Bushing I.D. | 1/2 in |
| Chamber Sizes | 20 in (50.8 cm) |
| Clevis Thread Diameter (in.) | 1/2 in |
| Clevis Threads per inch | 18 |
| Clevis Type | Unclevised |
| Number of Splines | 28 |
| Spline Diameter | 1-1/2 in |
| Spline Diameter-Spline Count | 1-1/2 - 28 |
| Type | Slack Adjuster |
| Brake Type | S-Cam |
| Chamber Size | 20 in |
| Product Category | S-ASA Slack Adjuster |
| Weight | 8-10 lbs |
