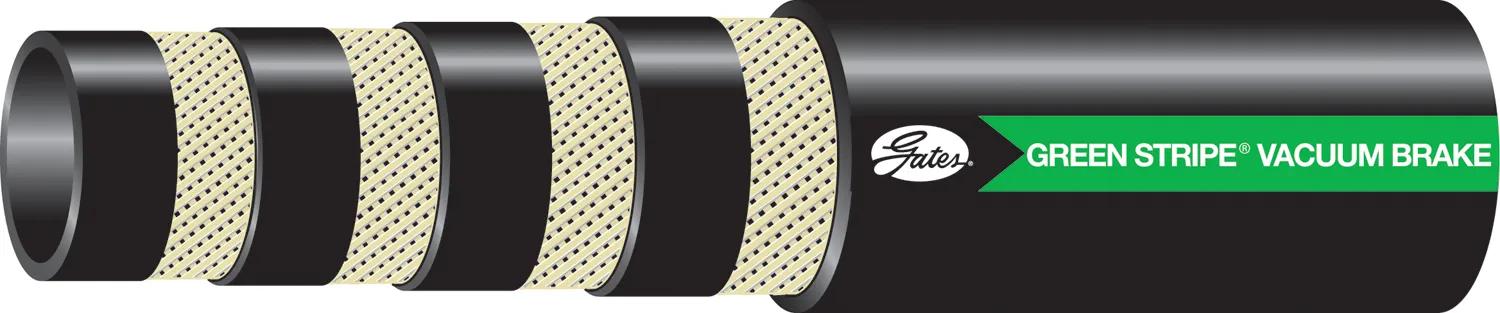

Multi-Use Air, Power & Vacuum Hose, ID: 1/2 in
#GAT27211
Product Overview
Extra Heavy-Duty Hose Designed to Fit Most Air Brake Systems on Trucks, Trailers & Other Heavy Equipment. Resists Collapsing or Deforming Even Under High Vacuum at Elevated Temperatures.
Features & Benefits
- Recommended Couplings: Gates G33 Air Brake.
- Exceeds SAE J1403, Type H Requirements. Complies w/ D.O.T. FMVSS 106VH Requirements. Temperature Range: -40 Deg F - + 257 Deg F (-40 Deg C - +125 Deg C).
Specifications
| Color | Black |
| Coupling Recommendation | Gates G33 Air Brake Couplings |
| Cover Material | Wrapped Hose |
| Industrial Description | 1/2 IN X50FT VAC BRAKE |
| Inside Diameter | 1/2 in (1.27 cm) |
| Length | 50 ft (15.24 m) |
| Minimum Burst Pressure (PSI) | 1000 psi (68.95 bar) |
| Outside Diameter | 15/16 in (2.38 cm) |
| Reinforcement | Multiple Plies of Rubber-Impregnated Fabric |
| Temperature Range | -40°F @ 257°F (-40°C @ 125°C) |
| Type | Fleet Application & Maintenance Hose |
| Vacuum Rating | 30 inhg (14.73 psi) |
