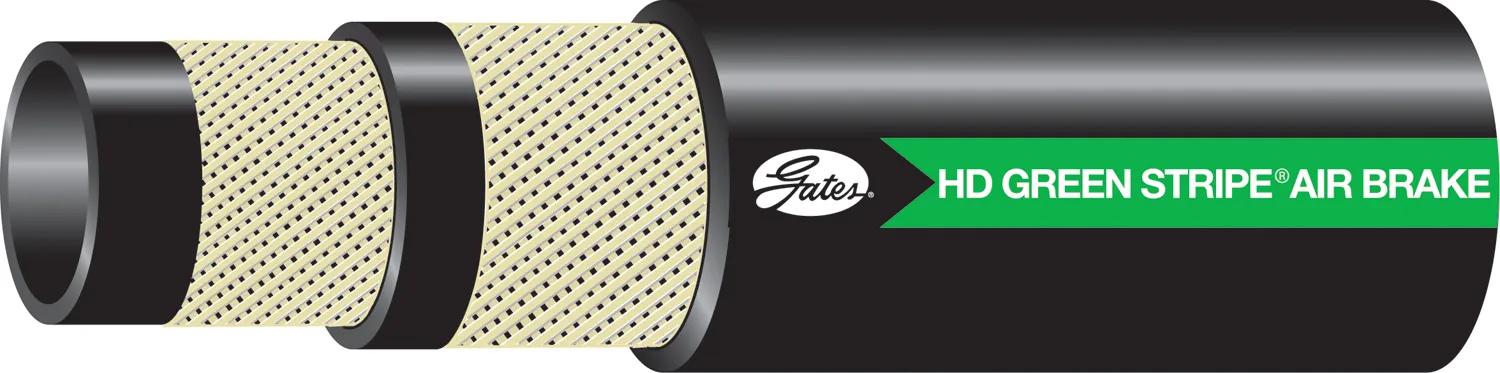

Multi-Use Air, Power & Vacuum Hose, L: 50 ft, ID: 3/8 in
#GAT27220
Product Overview
Recommended For Truck, Bus & Mobile Air Brake Systems. Can be Used as Flexible Connector Between Frame & Axle.
Features & Benefits
- Exceeds SAE J1402 & Bendix Specification. Complies w/ D.O.T. FMVSS 106 Requirements. Federal Law Requires Registration w/ the D.O.T. for Anyone Producing Air Brake Hose Assemblies w/ Swaged or Crimped Fittings.
- Temperature Range: -40 Deg F - +212 Deg F (-40 Deg C - +100 Deg C). Recommended Couplings: Gates G33 Air Brake.
Specifications
| Couleur | Black |
| Recommandation d'accouplement | Gates G33 Air Brake Couplings |
| Matériau du couvercle | Smooth Nitrile & Neoprene |
| Type de housse | Oil Resistant |
| Dash Size | 6 |
| Description industrielle | 6ABGS X50FT |
| Diamètre intérieur | 3/8 po (0,97 cm) |
| Longueur | 50 pi (15,24 m) |
| Matériel | Néoprène |
| Pression maximale | 225 psi (15.51 bar) |
| Pression minimale d'éclatement (PSI) | 1000 psi (68.95 bar) |
| Diamètre extérieur | 3/4 in (1.91 cm) |
| Product Type | Heavy-Duty Green Stripe Air Brake Hose |
| Reinforcement | Reinforced - Two Braids |
| Series | Heavy Duty Green Stripe |
| Standard | SAE J1402 |
| Temperature Range | -40°F @ 212°F (-40°C @ 100°C) |
| Tube Description | Neoprene |
| Type | Low Pressure |
Interchanges & Equivalent parts:
| 6ABGSX50FT |
| 27220 |
| H1402 |
| 32454468 |
