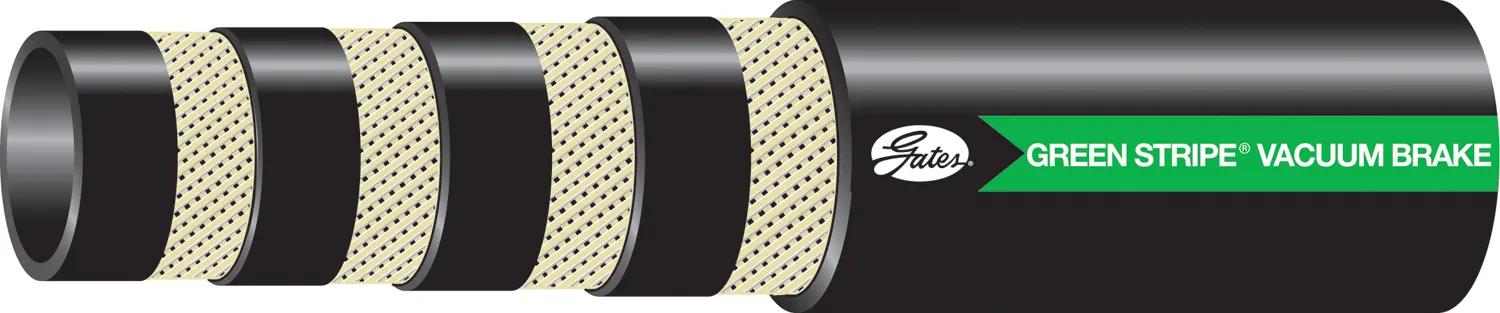

Multi-Use Air, Power & Vacuum Hose, L: 50 ft, ID: 5/8 in
#GAT27212
Product Overview
Extra Heavy-Duty Hose Designed to Fit Most Air Brake Systems on Trucks, Trailers & Other Heavy Equipment. Resists Collapsing or Deforming Even Under High Vacuum at Elevated Temperatures.
Features & Benefits
- Recommended Couplings: Gates G33 Air Brake.
- Exceeds SAE J1403, Type H Requirements. Complies w/ D.O.T. FMVSS 106VH Requirements. Temperature Range: -40 Deg F - + 257 Deg F (-40 Deg C - +125 Deg C).
Specifications
| Color | Black |
| Coupling Recommendation | Gates G33 Air Brake Couplings |
| Cover Material | Wrapped Hose |
| Industrial Description | 5/8 IN X50FT VAC BRAKE |
| Inside Diameter | 5/8 in (1.6 cm) |
| Length | 50 ft (15.24 m) |
| Minimum Burst Pressure (PSI) | 800 psi (55.16 bar) |
| Outside Diameter | 1-1/16 in (2.7 cm) |
| Reinforcement | Multiple Plies of Rubber-Impregnated Fabric |
| Temperature Range | -40°F @ 257°F (-40°C @ 125°C) |
| Type | Fleet Application & Maintenance Hose |
| Vacuum Rating | 30 inhg (14.73 psi) |
Interchanges & Equivalent parts:
| 35402 |
| 27212 |
| H1368 |
| 193225 |
| 58X50FTVACBRAKE |
