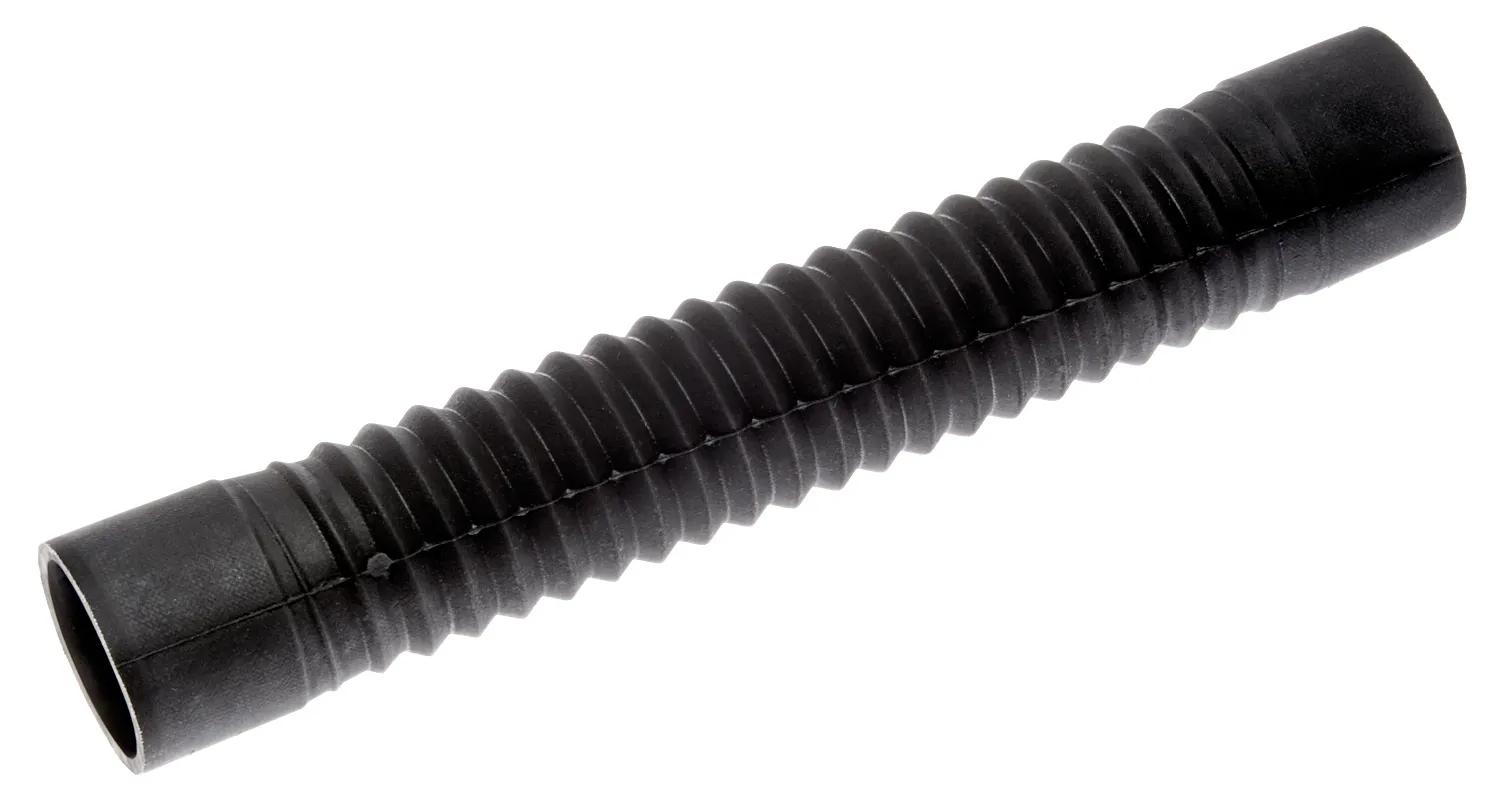

Flexible Coolant Hose, L: 11 in, ID: 2-1/4 in
#GAT26520
Features & Benefits
- Approved for marine applications
- Engineered with compounds to resist electrochemical degradation
- Performs to SAE 20R5 Type EC Class D-2 specifications
- Heat-resistant construction throughout
- Excellent flexibility, yet collapse and kink resistant
- Working pressure 40 psi maximum
- Extra strength fabric reinforcement with helical steel wire spiral molded between tube and cover
- EPDM tube and neoprene cover for extended service life
Specifications
| Caution | Do not use for fuel or oil transfer applications. |
| Inside Diameter 1 (in) | 2-1/4 in (5.72 cm) |
| Inside Diameter 2 (in) | 2-1/4 in (5.72 cm) |
| Length | 11 in (27.94 cm) |
| Maximum Pressure | 40 psi (2.76 bar) |
| Temperature Range | -40°F @ 257°F (-40°C @ 125°C) |
| Weight | 0.73 lb (0.33 kg) |
Interchanges & Equivalent parts:
| 1700824 |
| 1710974 |
| 1712875 |
| 199174 |
| 2061328 |
| 2069767 |
| 2462750 |
| 2463651 |
| 2490312 |
| 2490332 |
| 2514228 |
| 31719 |
| 332998 |
| 552481 |
| 664856 |
| 11864F |
| 11MF2320P10 |
| 11MF2320P13 |
| 11MF2320P17 |
| 2111HD |
| 276119C1 |
| 276119C22 |
| 336663R1 |
| 423961C1 |
| 82171GL |
| 972F228 |
| 972F266 |
| A628392C2 |
| BH-637 |
| C3TA 8286 A |
| C3TZ 8286 A |
| C423611 |
| C9HS 8286 E |
| D0HA 8286 BL |
| D0HA 8286 BM |
| FM55 |
| KE-110 |
| M19204F |
| M55 |
| N19204E |
| N19204F |
| N91204AK |
| V1092200 |
| VF103 |
| WA7817 |
| 10MF29301P11 |
