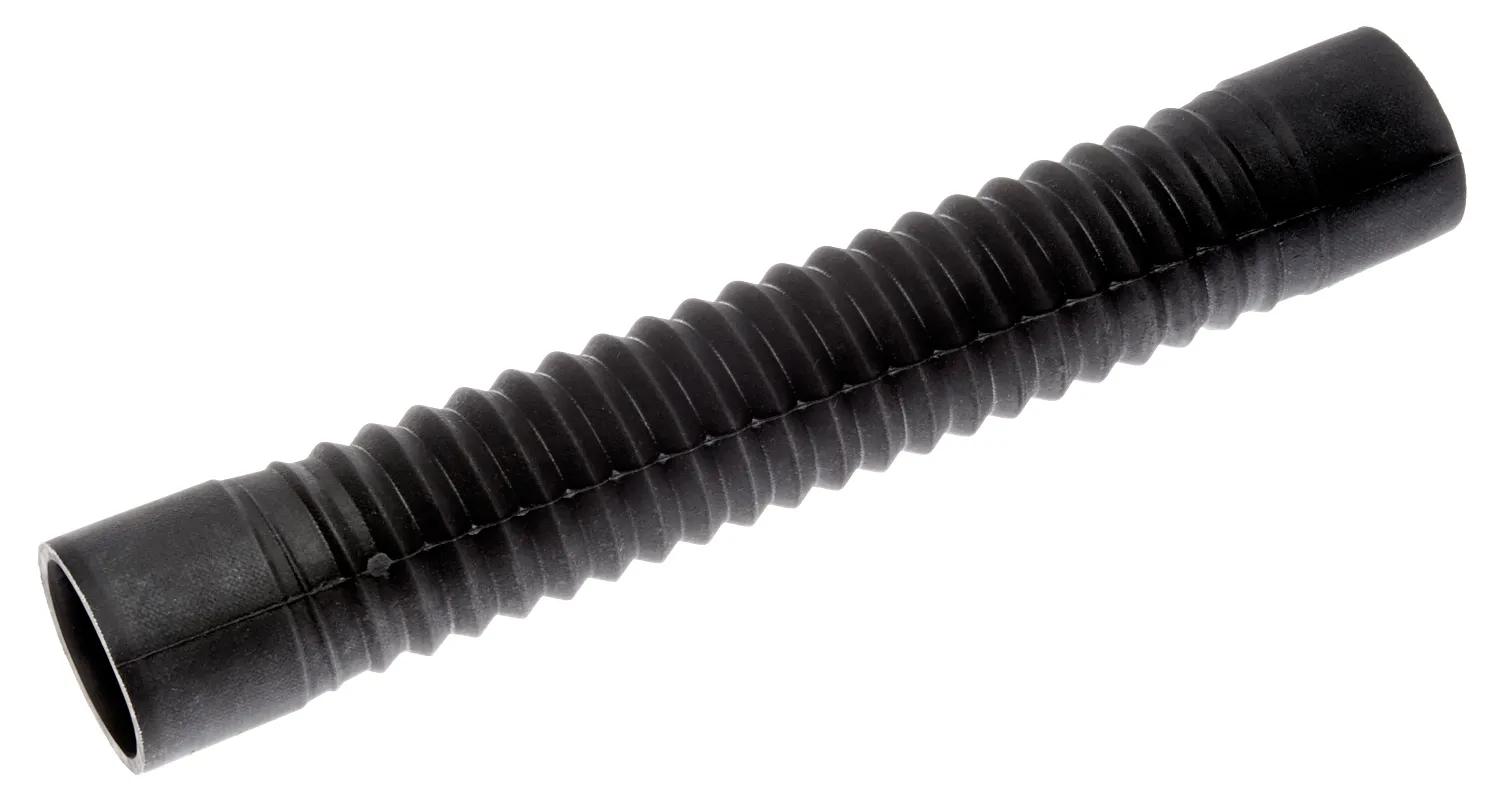

Molded Coolant Hose, L: 20 in, ID: 2-1/64 in
#GAT26518
Features & Benefits
- Approved for marine applications
- Engineered with compounds to resist electrochemical degradation
- Performs to SAE 20R5 Type EC Class D-2 specifications
- Heat-resistant construction throughout
- Excellent flexibility, yet collapse and kink resistant
- Working pressure 40 psi maximum
- Extra strength fabric reinforcement with helical steel wire spiral molded between tube and cover
- EPDM tube and neoprene cover for extended service life
Specifications
| Inside Diameter 1 (in) | 2-1/64 in (5.13 cm) |
| Inside Diameter 2 (in) | 2-1/64 in (5.13 cm) |
| Maximum Pressure | 40 psi (2.76 bar) |
| Temperature Range | -40°F @ 257°F (-40°C @ 125°C) |
| Weight | 1.31 lb (0.59 kg) |
Interchanges & Equivalent parts:
| 1712586 |
| 31717 |
| 532201 |
| D0HZ 8286 E |
| D2HA 8286 AAA |
| D6TA 8260 BA |
| FM90 |
| K181C492 |
| R53550 |
| VF108 |
| 50001201 |
