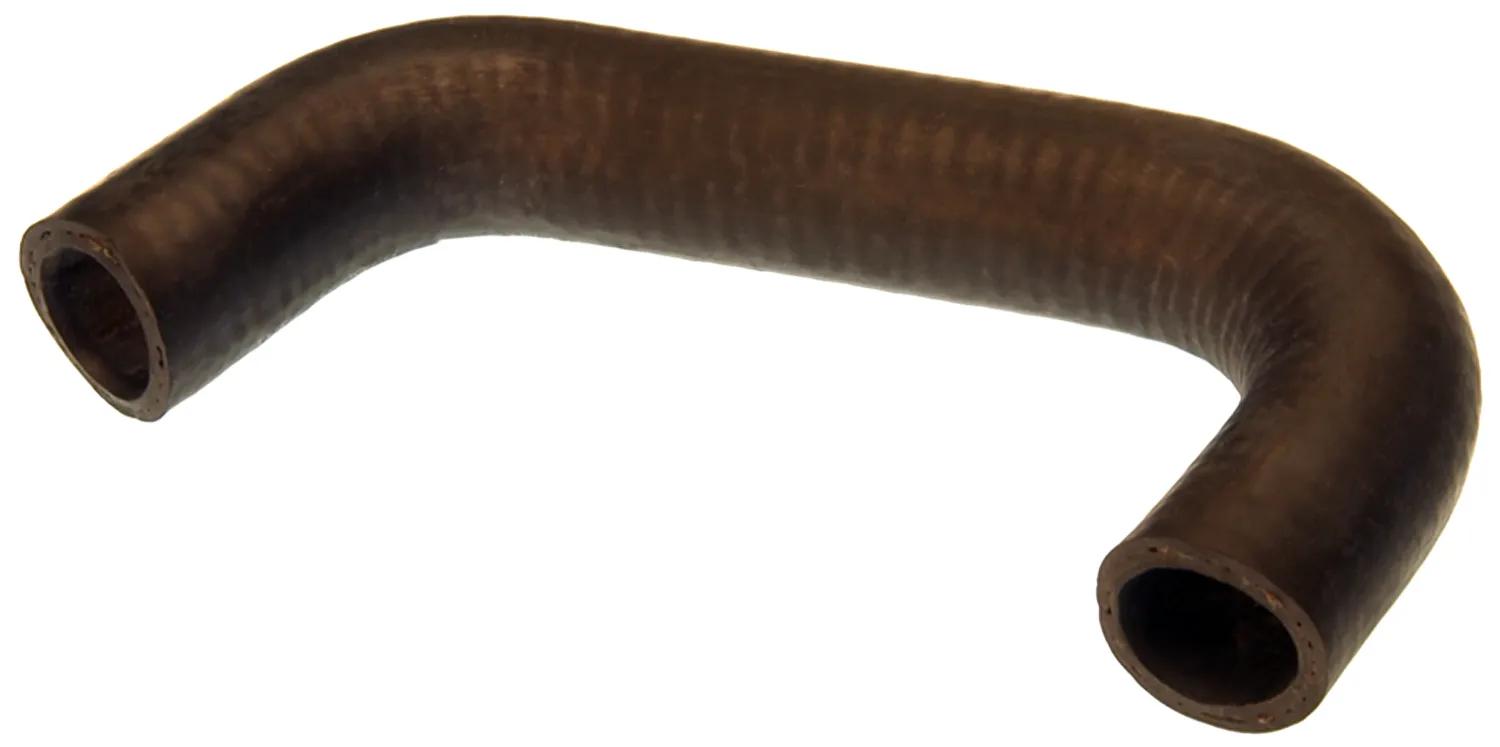

Molded Coolant Hose, L: 10-1/2 in, ID: 63/64 in
#GAT20565
Features & Benefits
- Approved for marine applications
- Engineered to resist electrochemical degradation - the leading cause of hose failure
- Meets SAE 20R3 EC Class D1 under 25mm (1") ID, SAE 20R4 EC Class D1 for 25mm (1") ID and over
- Specifically engineered materials resist vacuum collapse to reduce the need for internal springs in many applications
- Custom shapes available with minimum order quantity and setup charge
- Recommended for upper, lower, by-pass, heater and other coolant hose applications
- Note: Gates recommends replacing hose clamps each time a new coolant hose is installed
- EPDM tube, synthetic fiber knit reinforcement, heat- and ozone-resistant EPDM cover
Specifications
| Caution | Do not use for fuel or oil transfer applications. |
| Contains Spring | No |
| Inside Diameter 1 (in) | 63/64 in (2.49 cm) |
| Inside Diameter 2 (in) | 63/64 in (2.49 cm) |
| Length | 10-1/2 in (26.67 cm) |
| Material | EPDM |
| Modular Hose | No |
| Note | Gates recommends replacing standard worm drive and spring loaded clamps with Gates PowerGrip SB Clamps each time a new coolant hose is installed. |
| Number of Branches | 0 |
| Temperature Range | -40°F @ 275°F (-40°C @ 135°C) |
| Weight | 0.42 lb (0.19 kg) |
Interchanges & Equivalent parts:
| 252 |
| 3839177 |
| 60692 |
| 61179 |
| 63692 |
| 7429 |
| 20040S |
| 478047C1 |
| 77-8846-6 |
| B70566 |
| BH-1103 |
| BP833 |
| C0565 |
| CH15528 |
| CH565 |
| KM-1344 |
| KM-634 |
| MH0565 |
| MH379 |
| MR833 |
| NH379 |
| 1526172851 |
