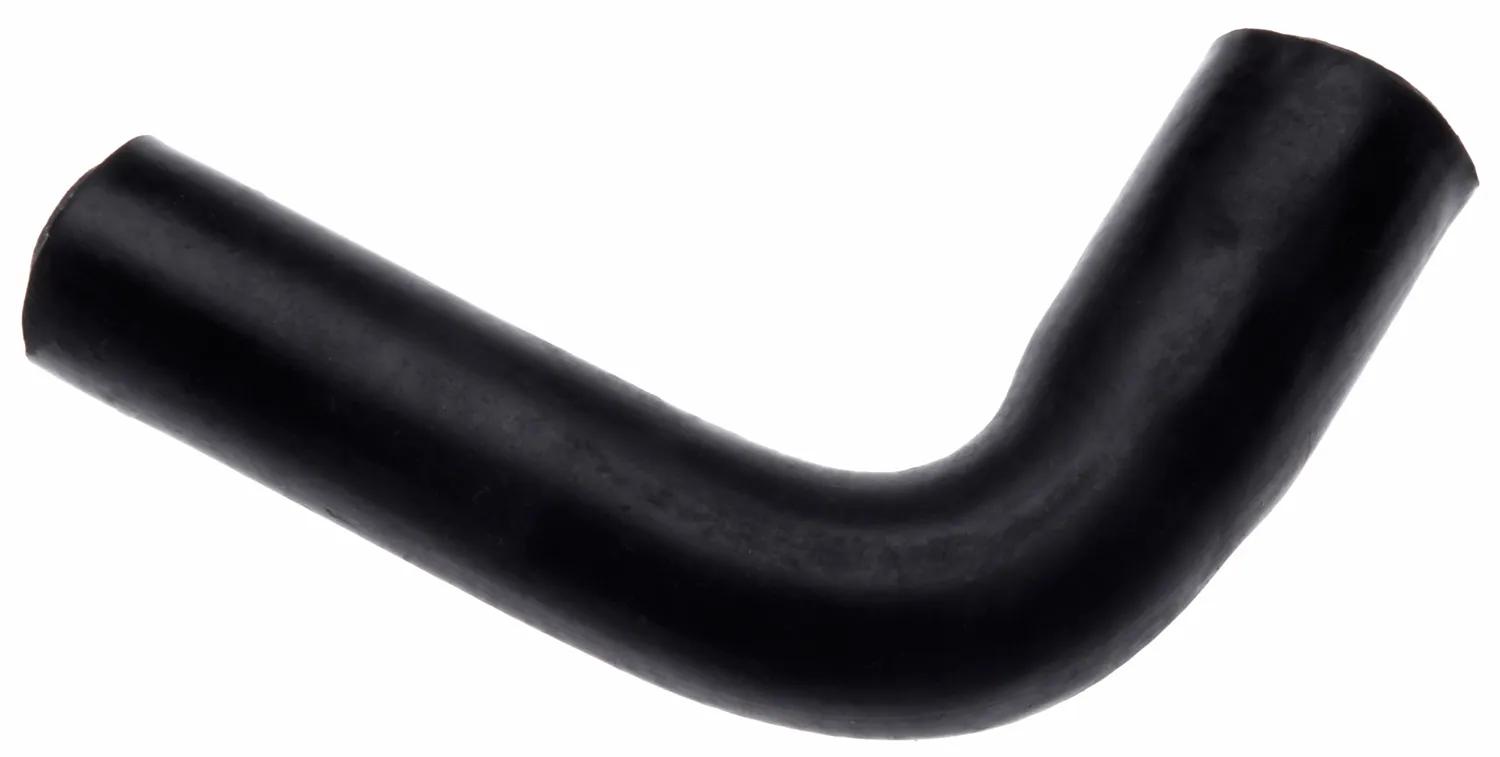

Molded Coolant Hose, L: 5-13/64 in, ID: 39/64 in
#GAT20662
Features & Benefits
- Approved for marine applications
- Engineered to resist electrochemical degradation - the leading cause of hose failure
- Meets SAE 20R3 EC Class D1 under 25mm (1") ID, SAE 20R4 EC Class D1 for 25mm (1") ID and over
- Specifically engineered materials resist vacuum collapse to reduce the need for internal springs in many applications
- Custom shapes available with minimum order quantity and setup charge
- Recommended for upper, lower, by-pass, heater and other coolant hose applications
- EPDM tube, synthetic fiber knit reinforcement, heat- and ozone-resistant EPDM cover
Specifications
| Caution | Do not use for fuel or oil transfer applications. |
| Contains Spring | No |
| Inside Diameter 1 (in) | 39/64 po (1,55 cm) |
| Inside Diameter 2 (in) | 3/4 po (1,91 cm) |
| Length | 5-13/64 po (13,21 cm) |
| Material | Terpolymère éthylène-propylène-diène (EPDM) |
| Modular Hose | No |
| Note | Gates recommends replacing standard worm drive and spring loaded clamps with Gates PowerGrip SB Clamps each time a new coolant hose is installed. |
| Number of Branches | 0 |
| Temperature Range | -40°F @ 275°F (-40°C @ 135°C) |
| Weight | 0.15 lb (0.07 kg) |
Interchanges & Equivalent parts:
| 3188865 |
| 361030 |
| 63726 |
| 642209 |
| 14-1782-0 |
| 14213S |
| 2003 |
| 25533059 |
| 4241670 |
| 51317068 |
| 6450-12004 |
| 811121109B |
| 67969 |
| 70646 |
| 7447 |
| 740 55 |
| 77-8375-6 |
| 77-8465-5 |
| 9240601P04 |
| A70646 |
| A71518 |
| BH-1511 |
| BP-726 |
| BP-8 |
| BP0662 |
| BP867 |
| BP9 |
| C0662 |
| C2OZ 8597 D |
| C9DE 8597 D |
| C9OE 8597 D |
| C9OE 8597 E |
| C9OZ 8597 B |
| CB8 |
| CH662 |
| D00Z 8597 B |
| D0OE 8597 A |
| D0OE 8597 B |
| D0OE8579B |
| D0OZ 8597 B |
| D20E 8597 AB |
| 89022534 |
| 88956889 |
| D2OE 8597 AA |
| D2OE 8597 AB |
| D2OE 8597 BA |
| D2OE 8597 CA |
| D2OE 8597 DA |
| D2OZ 8597 AA |
| D5ZE 8597 AA |
| D9AE 8597 AA |
| D9AE 8597 B |
| D9AE 8597 BA |
| D9AZ 8597 A |
| D9AZ 8597 AA |
| D9AZ 8597 B |
| D9ZE 8597 AA |
| D9ZZ 8597 B |
| E6TZ 8597 B |
| E8TE 8A506 BC |
| E9AE 8597 AA |
| F1SE 8597 A |
| F1SE 8597 AB |
| F1SE 8597 AC |
| F1SZ 8597 A |
| F7SE 8597 AC |
| KM-1081 |
| KM-1082 |
| KM-1083 |
| KM-1935 |
| KM-640 |
| MH0662 |
| MH239 |
| MH5 |
| MR867 |
| P20662 |
| RH138 |
| T8375 |
| 10065571 |
