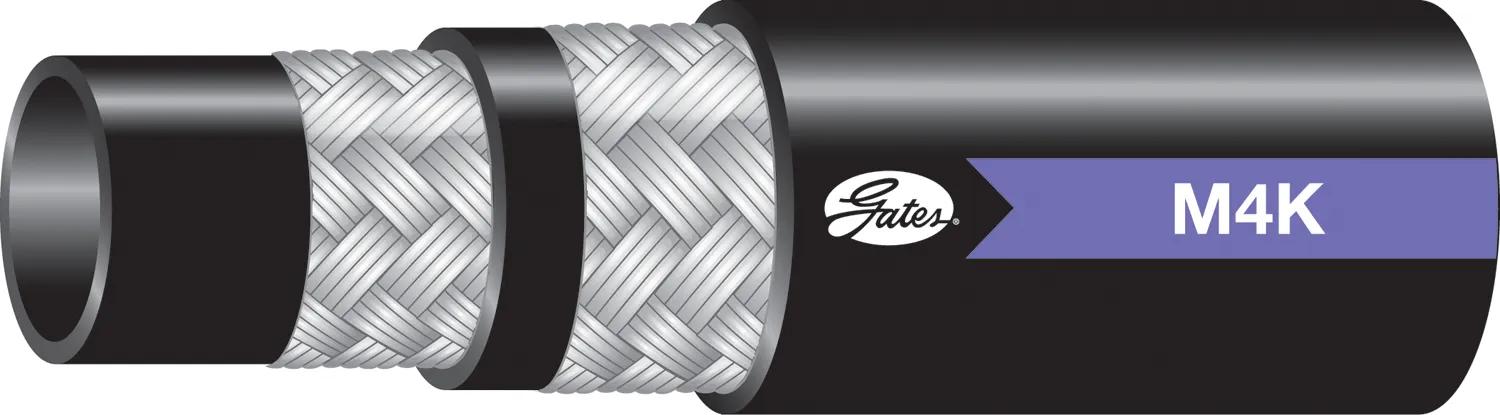

Hydraulic Hose, ID: 3/4 in
#GAT85620
Product Overview
Recommended for High-Pressure Hydraulic Applications. Exceeds SAE 100R19 & ISO11237 R19. Allows for Tighter Minimum Bend Radius, Increased Working Pressure & Improved Impulse Cycles than Industry Standards.
Features & Benefits
- Provides Greater Performance, Flexibility, Easier Routing & Plumbing of Mobile & Stationary Hydraulic Platforms. Meets Flame Resistance Acceptance Designation MSHA 2G.
- Temperature Range: -40 Deg F - +212 Deg F (-40 Deg C - +100 Deg C). Recommended Couplings: GlobalSpiral, MegaCrimp, Stainless Steel B (Sizes 4 – 8) & Stainless Steel S (Sizes 12 – 16).
Specifications
| Color | Black |
| Coupling Recommendation | GlobalSpiral, MegaCrimp, Stainless Steel S |
| Cover Material | Synthetic Rubber - Modified Nitrile - Type C2 - Color Coded Layline |
| Cover Type | Type C2 - Flame, Oil, Abrasion & Weather Resistant |
| Dash Size | 12 |
| Industrial Description | 12M4KX50FT |
| Inside Diameter 1 (in) | 3/4 in (1.91 cm) |
| Length | 50 pi (15.24 m) |
| Maximum Pressure | 4000 psi (275.79 bar) |
| Minimum Burst Pressure (PSI) | 16000 psi (1103.14 bar) |
| Outside Diameter | 1-11/64 in (2.97 cm) |
| Product Type | Global M4K Mega4000 Hose - SAE 100R19 |
| Radius | 3-51/64 in (9.65 cm) |
| Reinforcement | Two Braids; High-Tensile Steel Wire |
| Standard | SAE 100R19 |
| Temperature Range | -40°F @ 212°F (-40°C @ 100°C) |
| Tube Description | Black, Oil-Resistant, Synthetic Rubber |
| Type | High Pressure |
Interchanges & Equivalent parts:
| H35012 |
| 85620 |
| 12M4KX50FT |
| 04029826 |
| PA281277 |
| M812 |
| 46574870 |
