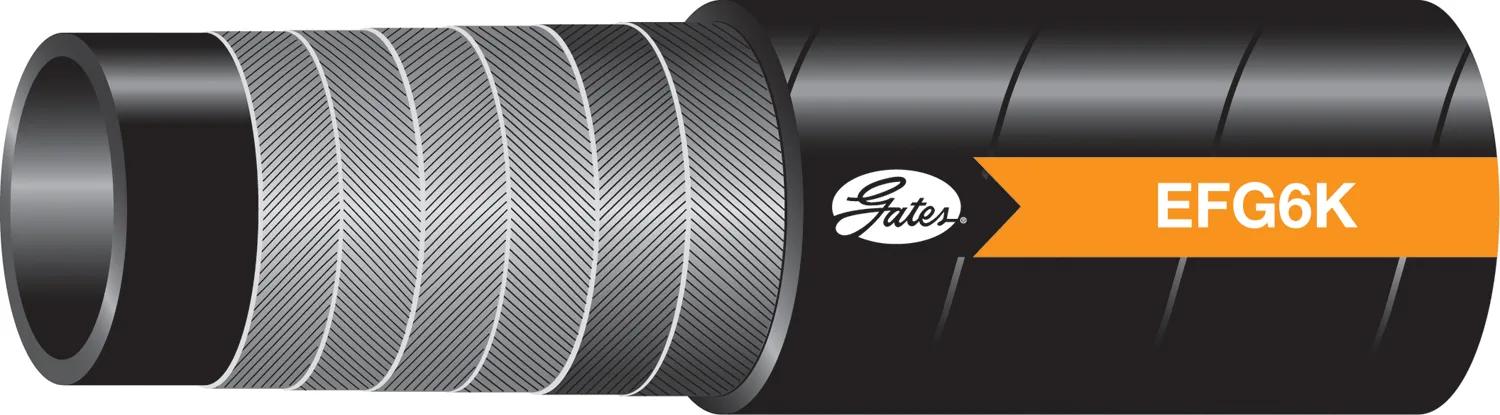

Hydraulic Hose, Le: 250 pi, ID: 5/8 in, GlobalSpiral
#GAT70815
Product Overview
Recommended for Extremely High Pressure, High Impulse Applications Such as Hydrostatic Transmissions. Recommended for Extremely High Pressure, High Impulse Applications Such as Hydrostatic Transmissions.
Features & Benefits
- Compatible w/ Biodegradable Hydraulic Fluids like Polyolester, Polyglycol & Vegetable Oil as Well as Standard Petroleum-Based Fluids. Meets Flame Resistance Acceptance Designation MSHA 2G.
- EFG6K is Designed to Meet or Exceed All Requirements of SAE 100R15 Specifications & Performance Requirements of EN 856 4SP (Sizes 6, 8, 10 & 12), EN 856 4SH (Sizes 12, 16 & 20), and ISO 3862 Type R15 (Sizes 6, 8, 10, 12, 16 & 24).
- Temperature Range: -40 Deg F - +250 Deg F (-40 Deg C - +121 Deg C). Recommended Couplings: GlobalSpiral, GlobalSpiral MAX Pressure & Stainless Steel S (Sizes 6 - 20).
Specifications
| Couleur | Black |
| Recommandation d'accouplement | GlobalSpiral, Stainless Steel S |
| Matériau du couvercle | Synthetic Rubber - Polychloroprene - Type A - Color Coded Layline |
| Type de housse | Type A - Flame & Oil Resistant |
| Dash Size | 10 |
| Description industrielle | 10EFG6KXCTN |
| Diam. intérieur 1 (po) | 5/8 po (1,6 cm) |
| Longueur | 250 ft (76,2 m) |
| Pression maximale | 6000 psi (413.68 bar) |
| Pression minimale d'éclatement (PSI) | 24000 psi (1654.72 bar) |
| Diamètre extérieur | 1-3/32 in (2.78 cm) |
| Type de produit | EFG6K Spiral Wire Hose - SAE 100R15 |
| Rayon | 4 in (10.16 cm) |
| Reinforcement | Four Alternating Layers of Spiraled, High-Tensile Steel Wire |
| Standard | SAE 100R15 |
| Temperature Range | -40°F @ 250°F (-40°C @ 121°C) |
| Tube Description | Black, Oil-Resistant, Synthetic Rubber |
| Type | Tuyau à très haute pression |
Interchanges & Equivalent parts:
| G4SP10X100 |
| G4SP10X100CL |
| GR1510X100CL |
| 70815 |
| 10EFG6KXCTN |
| 4SP10 |
| H85010 |
| N310 |
| 04029632 |
| 515010 |
| 46511368 |
