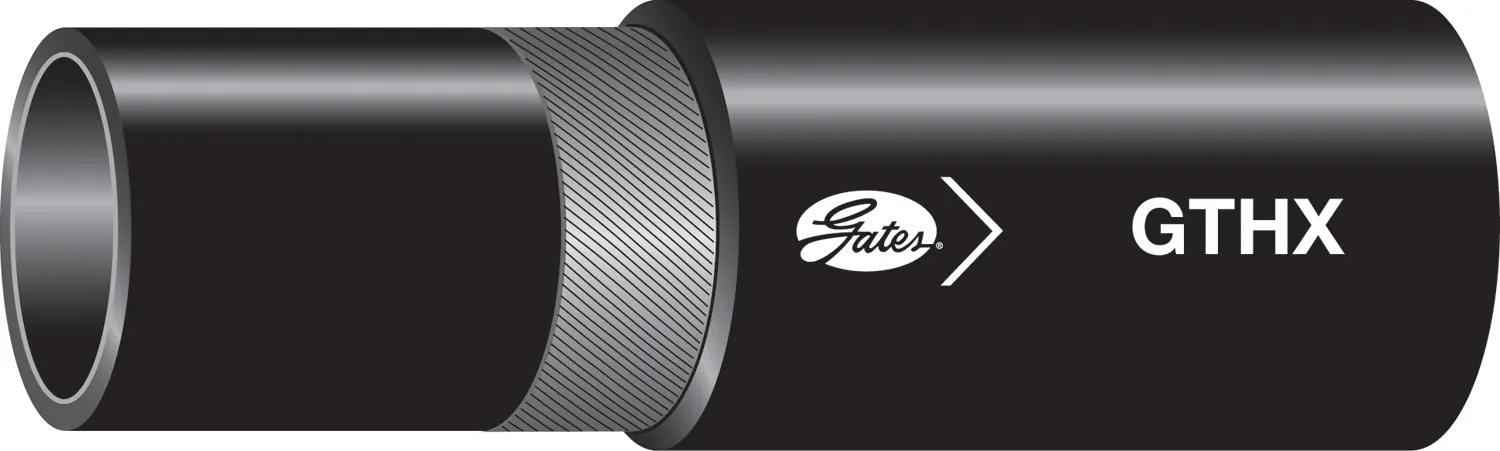

Hydraulic Hose, ID: 3/8 in, GlobalSpiral
#GAT86688
Product Overview
Recommended for Hydraulic Oil lines, Heavy-Duty Transmission Oil Cooler Lines & Glycol Anti-Freeze Solutions. Meets or Exceeds Requirements of SAE 100R6.
Features & Benefits
- Temperature Range: -40 Deg F - +275 Deg F (-40 Deg C - +135 Deg C). Recommended Couplings: MegaCrimp.
Specifications
| Color | Black |
| Coupling Recommendation | MegaCrimp |
| Cover Material | Synthetic Rubber - Neoprene - Type A |
| Cover Type | Type A - Oil & Abrasion Resistant |
| Dash Size | 6 |
| Industrial Description | 6GTHXX50FT |
| Inside Diameter 1 (in) | 3/8 in (0.97 cm) |
| Length | 300 ft (91.44 m) |
| Maximum Pressure | 400 psi (27.58 bar) |
| Minimum Burst Pressure (PSI) | 1600 psi (110.31 bar) |
| Outside Diameter | 5/8 in (1.6 cm) |
| Product Type | GTHX High -Temp Fiber Spiral Hose - SAE 100R6 |
| Radius | 3 in (7.62 cm) |
| Reinforcement | Spiraled Synthetic Fiber |
| Standard | SAE 100R6 |
| Temperature Range | -40°F @ 275°F Constant and 300°F Intermittent |
| Tube Description | Black, Specially Compounded, Synthetic Rubber |
| Type | Low Pressure |
| Vacuum Rating | 28 inhg (13.76 psi) |
Interchanges & Equivalent parts:
| 10506 |
| GR606X50 |
| H0090625R |
| H0090650R |
| 86688 |
| 6GTHXX50FT |
| 04030253 |
| 32890005 |
