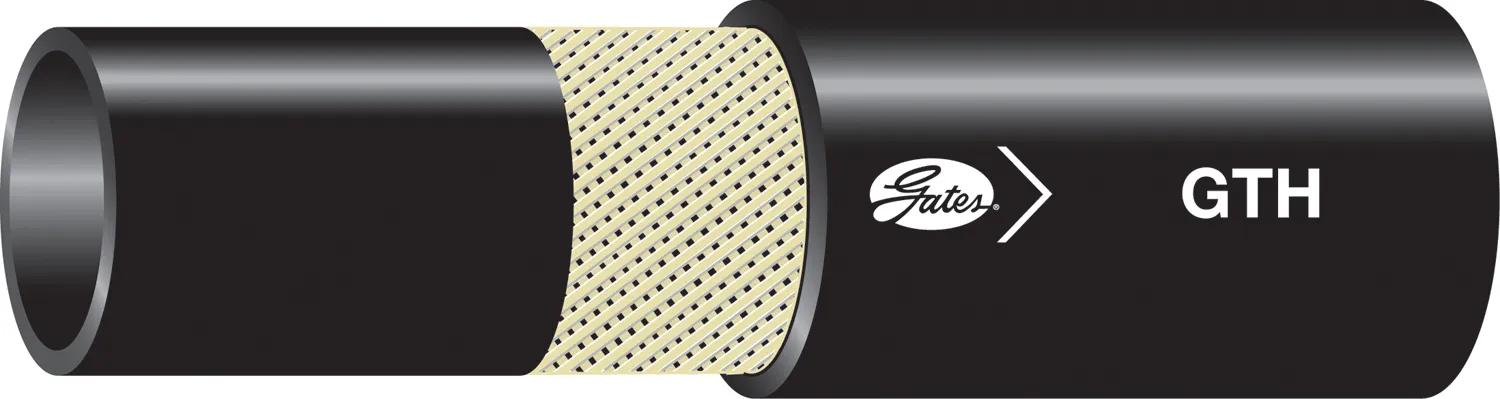

Hydraulic Hose, Le: 350 pi, ID: 5/8 in, MegaCrimp
#GAT70111
Product Overview
Recommended for Hydraulic Oil lines, Heavy-Duty Transmission Oil Cooler Lines & Glycol Anti-Freeze Solutions. Meets or Exceeds Requirements of SAE 100R6.
Features & Benefits
- Temperature Range: -40 Deg F - +275 Deg F (-40 Deg C - +135 Deg C) Constant; +300 Deg F (+149 Deg C) Intermittent (Up to 10% of Operating Time).
- Recommended Couplings: GLP (Sizes 4, 8 &12), MegaCrimp & Power Crimp (Size 3).
Specifications
| Color | Black |
| Coupling Recommendation | MegaCrimp |
| Cover Material | Synthetic Rubber - Neoprene - Type A |
| Cover Type | Type A - Oil & Abrasion Resistant |
| Dash Size | 10 |
| Industrial Description | 10GTHXCTN |
| Inside Diameter 1 (in) | 5/8 po (1,6 cm) |
| Length | 350 ft (106,67 m) |
| Maximum Pressure | 350 psi (24.13 bar) |
| Minimum Burst Pressure (PSI) | 1400 psi (96.53 bar) |
| Outside Diameter | 29/32 in (2.31 cm) |
| Product Type | GTH High-Temp 1-Fiber Braid Hose - SAE 100R6 |
| Radius | 5 in (12.7 cm) |
| Reinforcement | One Fiber Braid |
| Standard | SAE 100R6 |
| Temperature Range | -40°F @ 275°F Constant and 300°F Intermittent |
| Tube Description | Black, Specially Compounded, Synthetic Rubber |
| Type | Low Pressure |
| Vacuum Rating | 15 inhg (7.37 psi) |
Interchanges & Equivalent parts:
| HR6-10X500 |
| HR610X500 |
| GYHHR6-10X500 |
| GR610X500 |
| GR610X500RL |
| HR610X500RL |
| FC49811 |
| 70111 |
| 10GTHXCTN |
| FC498-11 |
| 611HT10RL |
| 04030248 |
| 33193325 |
