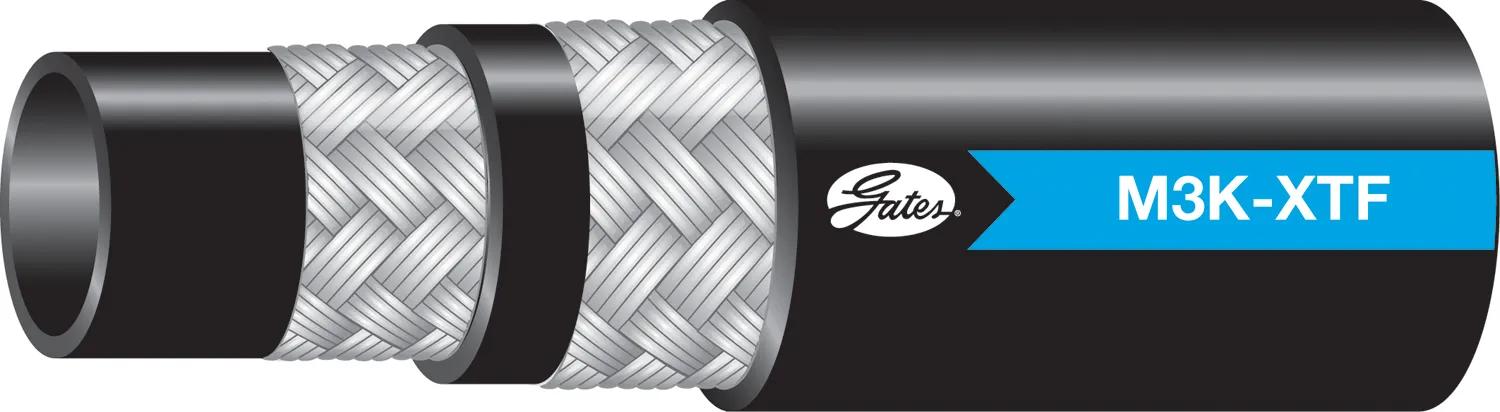

Hydraulic Hose, Le: 50 pi, ID: 5/8 in, GlobalSpiral
#GAT70572
Product Overview
Recommended for High-Pressure Hydraulic Oil Lines. Exceeds SAE 100R17 & ISO11237 R17 Working Pressure, Minimum Bend Radius Requirements & Performance Requirements of EN 857 1SC.
Features & Benefits
- M3K Hose Has Smaller Exterior Dimensions & Significantly Tighter Bend Radius than Other SAE 100R1 & 100R2 Hose. Meets Flame Resistance Acceptance Designation MSHA 2G.
- Temperature Range: -40 Deg F - +212 Deg F (-40 Deg C - +100 Deg C). XtraTuff Hose Lasts up to 25 Times Longer than Standard Hose During hose-to-Hose & Hose-to-Metal Abrasion Tests Per ISO 6945.
- Recommended Couplings: GlobalSpiral, MegaCrimp, Power Crimp (Size 3) & Stainless Steel B.
Specifications
| Color | Black |
| Coupling Recommendation | GlobalSpiral, MegaCrimp, Stainless Steel B |
| Cover Material | Synthetic Rubber - Modified Nitrile - Type C2 - Color Coded Layline |
| Cover Type | Type C2 - Flame, Oil, Abrasion & Weather Resistant - XtraTuff Cover |
| Dash Size | 10 |
| Industrial Description | 10M3K-XTFXREEL |
| Inside Diameter 1 (in) | 5/8 in (1.6 cm) |
| Length | 50 ft (15.24 m) |
| Maximum Pressure | 3250 psi (224.08 bar) |
| Minimum Burst Pressure (PSI) | 13000 psi (896.3 bar) |
| Outside Diameter | 63/64 in (2.49 cm) |
| Product Type | Global M3K Mega3000 Hose - SAE 100R17 - XtraTuff Cover |
| Radius | 3 in (7.62 cm) |
| Reinforcement | Two Braids; High-Tensile Steel Wire |
| Standard | SAE 100R17 |
| Temperature Range | -40°F @ 212°F (-40°C @ 100°C) |
| Tube Description | Black, Oil-Resistant, Synthetic Rubber |
| Type | High Pressure |
Interchanges & Equivalent parts:
| 451TC10 |
| 451TC10BX |
| 451TC10RL |
| 70572 |
| 10M3KXTFXREEL |
| 387TC10 |
| AM10 |
| 04029931 |
| 46572249 |
