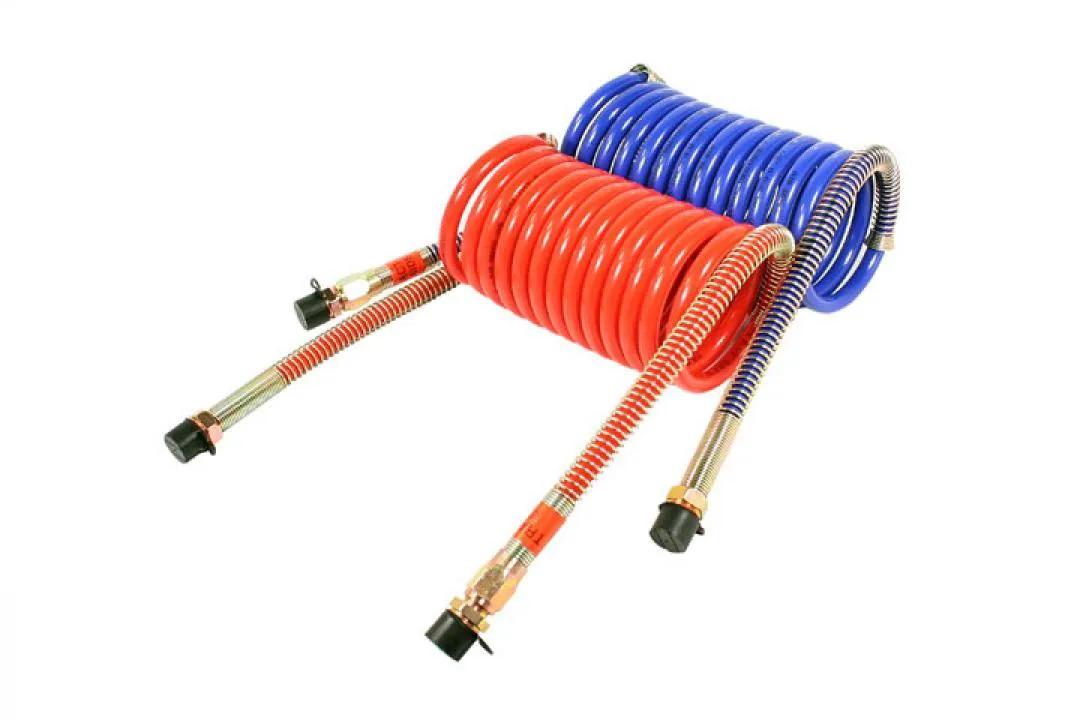

Air Coiled Hoses, Red & Blue, Le: 15 ft
#PHI11-715
Features & Benefits
- 1/2" NPTF
- As recommended practice, use a tracker bar spring kit or pogo to support cable assemblies with longer leads
- Comes standard with temporary protective fitting caps to shield thread seal and blocks unwanted debris before installation
- Includes thread seal for secure connection to gladhand
- Meets DOT 49 FMVSS 393. 45 specifications
- Meets DOT CFR 49 FMVSS 571. 106 specifications
- Meets SAE J844 and J1131 specifications
- Single piece trailer side & four swivel piece tractor side fittings
- Steel springs for added tubing protection
Specifications
| Color | Bleu et rouge |
| Diameter | 4 po (10,16 cm) |
| Includes | Thread seal for secure connection to gladhand |
| Inside Diameter | 1/2 po (1,27 cm) |
| Length | 15 pi (4,57 m) |
| Material | Caoutchouc |
| Outside Diameter | 7/8 po (2,24 cm) |
| Pressure | 150 psi (10.34 bar) |
| Product Type | Coiled Air |
| Temperature Range | -40°C (-40°F) @ 104°C (220°F) |
| Type | Standard Duty |
| Weight | 2.27 kg (5 lb) |
Interchanges & Equivalent parts:
| 11-315 |
| 11-3150 |
| 81-0015 |
| 11-715DSP |
| 11-715PDC |
| PHL11-715 |
| 11-715 |
