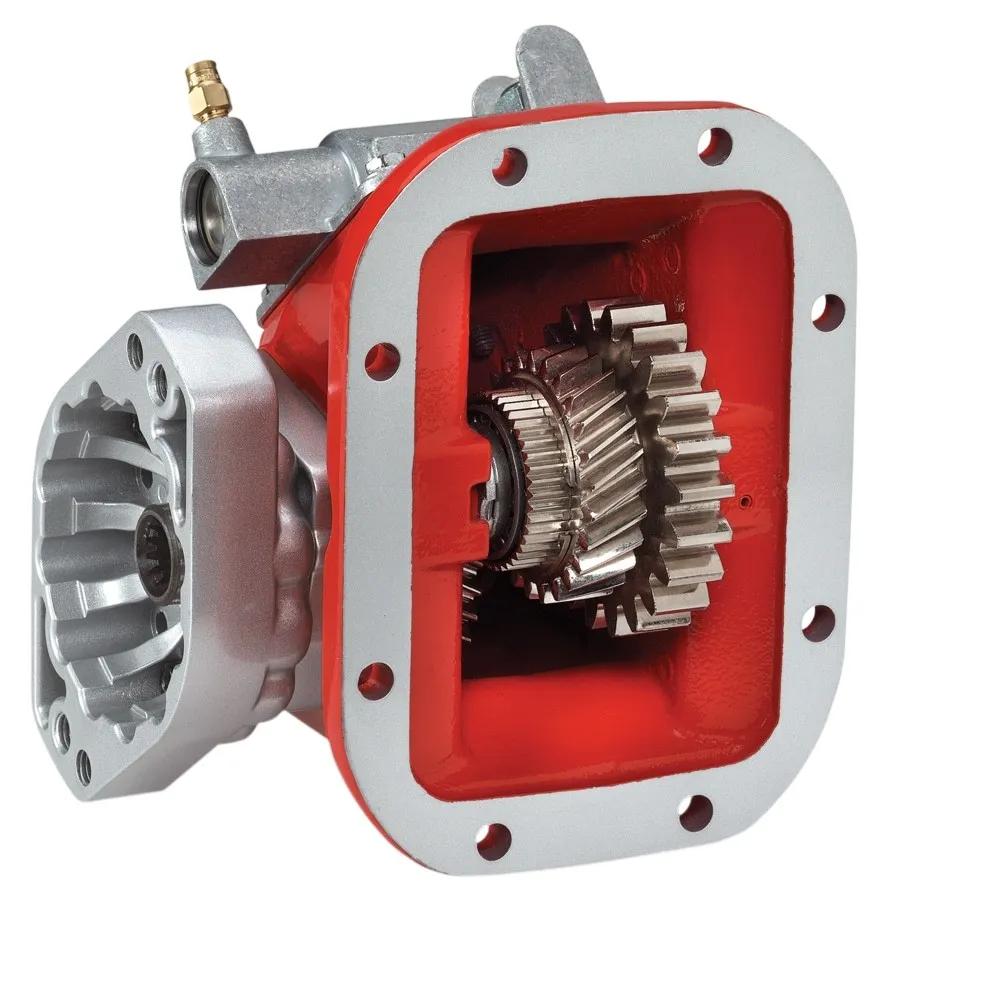

Power Take-Off Unit, 17:37 Gear Ratio, De-Rate Torque Rating 30% Continuous Torque

Chelsea 489 series Power Take-Off Unit (PTO) for manual transmission is specifically designed to reduce mounting time and potential leak paths. The one-piece cast iron PTO housing bolts directly to the 8-bolt transmission opening but gives the same torque capacity as the 442 series (250 lb-ft). The Chelsea 489 PTO has strong tapered bearings instead of needle bearings for greater load bearing capability. Twenty-seven output options including Chelsea's popular 360 deg rotatable flange with greaseable shaft to reduce pump shaft spline fretting and corrosion. Eleven internal speed ratios and shift options make this one versatile PTO. Chelsea 489 mechanical shift PTO fits on most manual transmissions such as Eaton Endurant, Mack, Tremec and more.Power Take-Off Unit, 8 Bolt Standard Mount, Output Shaft Type: Round Shaft (1-1/4 in Key), Shift Type: Manual Air Shift, Less Installation Kit, De-Rate Torque Rating 30% Continuous Torque, 17:37 Gear Ratio, Intermittent Torque: 201 to 300 lb-ft, 301 to 400 Nm, 46 to 55 hp, 31 to 40 kW Output, Shaft Power: 24 hp (500 rpm), 48 hp (1000 rpm), 18 kW (500 rpm), 36 kW (1000 rpm), For Utility Trucks, Snow and Ice Removal, Fire and Rescue, Dump Truck and Trailer
