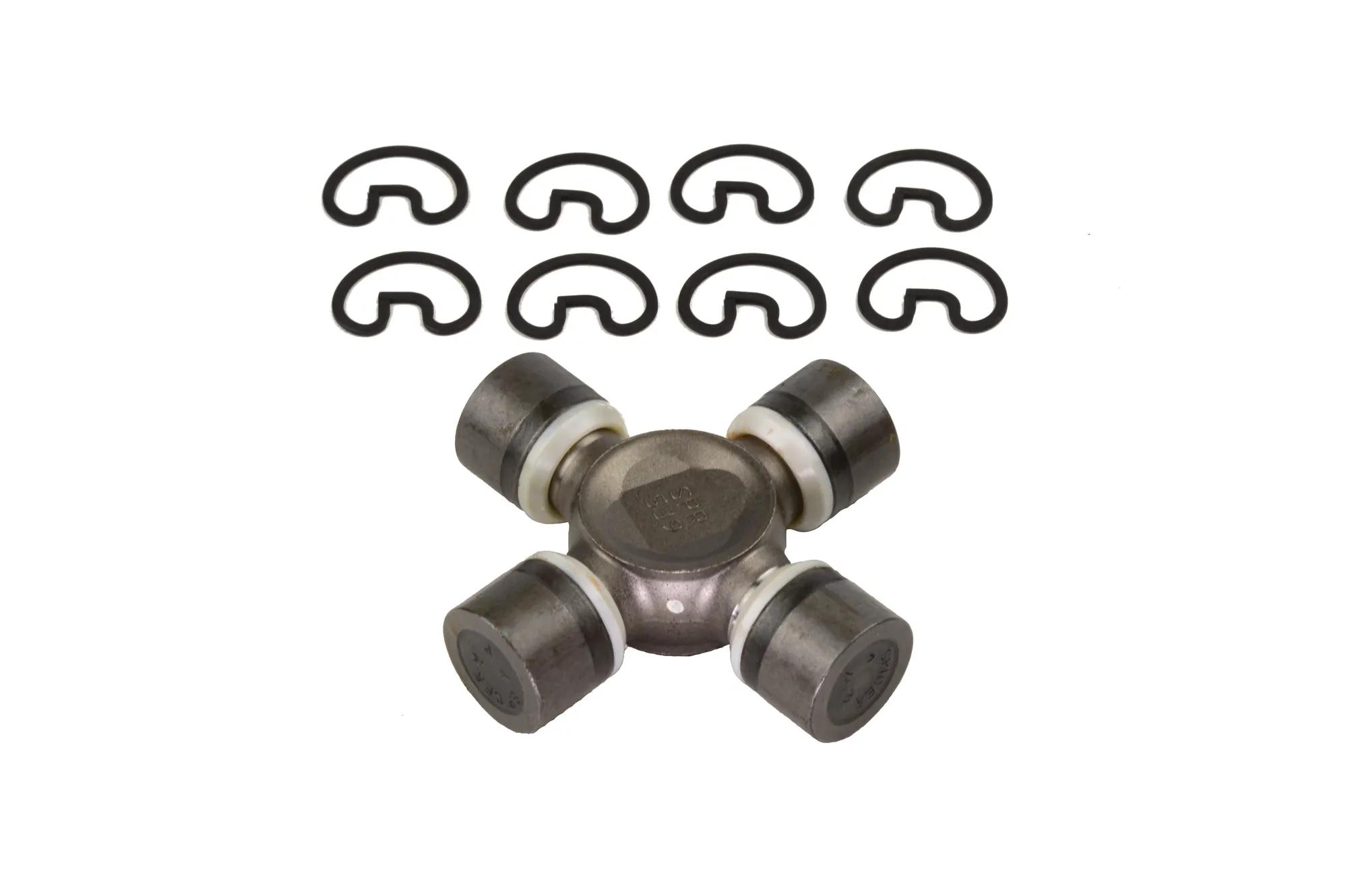

Universal Joint - 1330 Series
#SPI5-3614X
Caractéristiques et avantages
Caractéristiques et avantages
SPI5-3614X - Documents de caractéristiques - A
SPI5-3614X - Documents de caractéristiques - B
SPI5-3614X - Documents de caractéristiques - C
SPI5-3614X - Documents de caractéristiques - D
SPI5-3614X - Documents de caractéristiques - E
- Journal cross is engineered with a solid cold-formed body to ensure better wear and overall strength.
- Bearing cups are heat treated for strength; precision-ground and case-hardened for durability.
- Multi-lip seal keeps grease in and contaminants out, and gets maximum retention in a wider range of environments.
- Thrust washers eliminate metal-to-metal contact, prevent wear and lower the overall operating temperature.
Spécifications
| Diamètre du chapeau de palier (1) | 1.0625 |
| Bearing Cap Type (B) | OSR: Outside Snap Ring |
| Diamètre du chapeau de palier (2) | 1.0625 |
| Bearing Cap Type (A) | OSR: Outside Snap Ring |
| Graissable | Non |
| Style de joint en U | OSR |
| Séries | 1330 |
| Snap Ring (2) | 3-5/8 in (9.22 cm) |
| Snap Ring (1) | 3-5/8 in (9.22 cm) |
Interchanges et pièces équivalentes:
| 5-620X |
| 5-791X |
| 5013614 |
| 5521X |
| 5631X |
| SPL25-2X |
| 5-3614X |
