Universal Joint - S44 Series
#SPI5-3147X
Features & Benefits
Features & Benefits
SPI5-3147X - Features Documents - A
SPI5-3147X - Features Documents - B
SPI5-3147X - Features Documents - C
SPI5-3147X - Features Documents - D
SPI5-3147X - Features Documents - E
SPI5-3147X - Features Documents - F
SPI5-3147X - Features Documents - G
SPI5-3147X - Features Documents - H
SPI5-3147X - Features Documents - I
SPI5-3147X - Features Documents - J
SPI5-3147X - Features Documents - K
SPI5-3147X - Features Documents - L
SPI5-3147X - Features Documents - M
- OE engineering and field tested experience is why the Spicer brand is the most trusted in the industry.
- Forged with high-quality steel, these u-joints are heat treated and case-hardened with precision to specific levels, ensuring optimal strength and durability.
- The process of precision grinding the seal and bearing surfaces helps to improve the life of the seal and bearing.
- Zerk allows for lubricating at regular intervals to help extend the life of the part.
Specifications
| Bearing Cap Finish | Round |
| Bearing Cap Diameter (1) | 1.125 |
| Bearing Cap Type | Round |

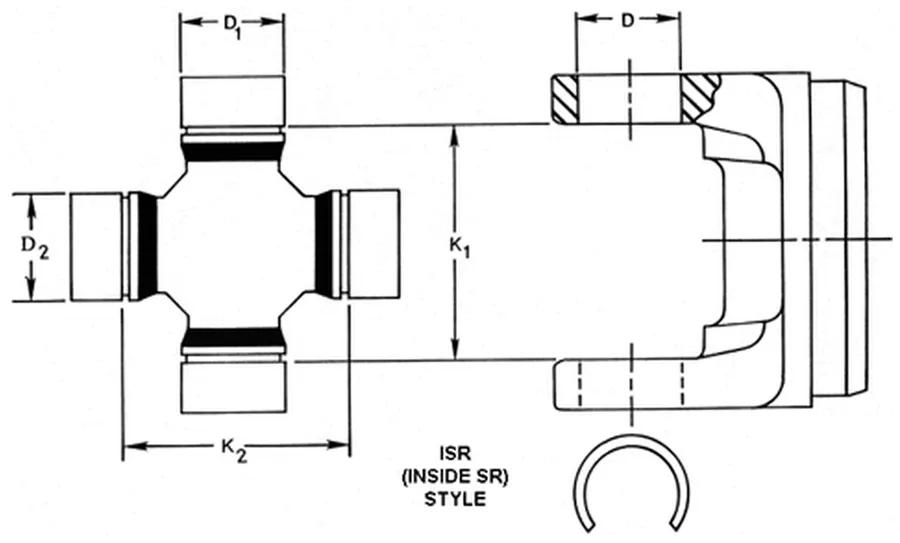

| Bearing Cap Type (B) | ISR: Inside Snap Ring |
| Bearing Cap Diameter (2) | 1.125 |
| Bearing Cap Type (A) | ISR: Inside Snap Ring |
| Cross Length (in.) | 2-9/16 in (6.5 cm) |
| Greasable | Yes |
| Grease Type | N.L.G.I. Grade 2 |
| Grease Zerk Included | Yes |
| Length | 2-9/16 in (6.5 cm) |
| Material | Steel |
| Pre Greased | No |
| Seal Material | Rubber |
| Series | S44 |
| Snap Ring (2) | 2-9/16 in (6.5 cm) |
| Snap Ring (1) | 2-9/16 in (6.5 cm) |
| Snap Ring Included | Yes |
| Weight | 0.61 lb (0.28 kg) |
Interchanges & Equivalent parts:
| CRS23011A |
| HD5-3147X |
| U9653147X |
| 2104-53147X |
| 24UJ3147 |
| 30312B |
| 30312I |
| 30312J |
| 3031G |
| 4025T |
| 53147X-SP |
| 85106690 |
| BL534G |
| CB0789 |
| CB3011 |
| D53147X |
| E-3147X |
| E53147X |
| K5-3147X |
| P5-3147X |
| SP 5 3147X |
| SP 53147X |
| TWD53147X |
| U0122 |
| U225 |
| U228 |
| 1000-UJ3147 |
| 1143105 |
| 1662169C91 |
| 2103105 |
| 3031B |
| 5-3147XR |
| 53147X |
| DT3147 |
| RC UJ3147 |
| RL3000 |
| S-9347 |
| TWDHD53147X |
| U0121 |
| U228G |
| UJ3147 |
| UJ534G |
| UJ534GCHR |
| HD53147X |
| 5-3147X |
| 1143011 |
| 534G |
| NUJ2103105 |
