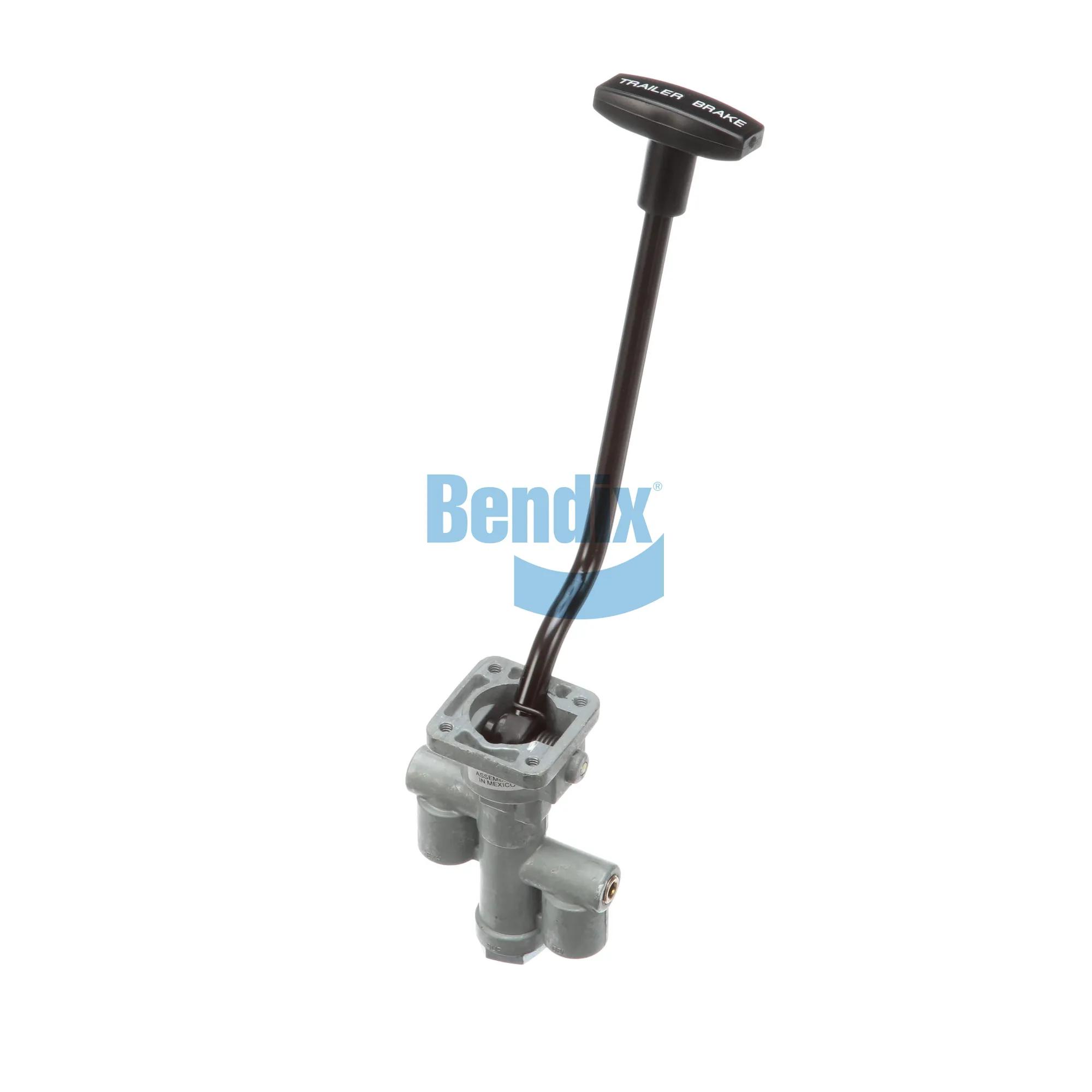

Bendix TC-6 Trailer Control Valve with 1/4-18 NPT Inlet and Outlet, 5-120 PSI Pressure Range
#BEN101786N
Product Overview
Trailer Control Valve, 1/4-18 NPT Inlet, 1/4-18 NPT Outlet, 120 psi Pressure Rating, -40 °F Temperature Rating, 131 mm Height, 288 mm Length, 73 mm Width
Features & Benefits
- Mounting Plate NOT Included. If Required, Refer to Master Parts Catalog.
- Manufactured to Meet or Exceed O.E.M. Specifications in Function, Form & Fit.
- Bendix Has Been a Trusted Manufacturer & Supplier to most Truck & Trailer O.E.M.s for Decades.
Specifications
| Hauteur | 131 mm |
| Longueur | 288 mm |
| Modèle | TC-6 |
| Neuf ou remanufacturé | Neuf |
| Contenu de l'emballage | (1) Valve de commande manuelle par boîte |
| Trousse de réparation n° | BEN289890 (trousse d'entretien) |
| Code VMRS | 013-010-014 |
| Poids | 1,26 lb (0,57 kg) |
| Largeur | 73 mm |
| Taille de l'entrée | 1/4-18 NPT |
| Taille de sortie | 1/4-18 NPT |
| Pression nominale | 5-120 PSI |
| Température nominale | -40 °F |
| Type | Valve de commande de remorque |
| Product Category | Valve de commande de remorque |
Interchanges & Equivalent parts:
| 101786 |
| BEN101786 |
| H101786X |
| 745-101786N |
| BAN101786N |
| BEN101786N |
| BW 101786N |
| BW 101786N |
| BX101786N |
| TWDBEN101786N |
