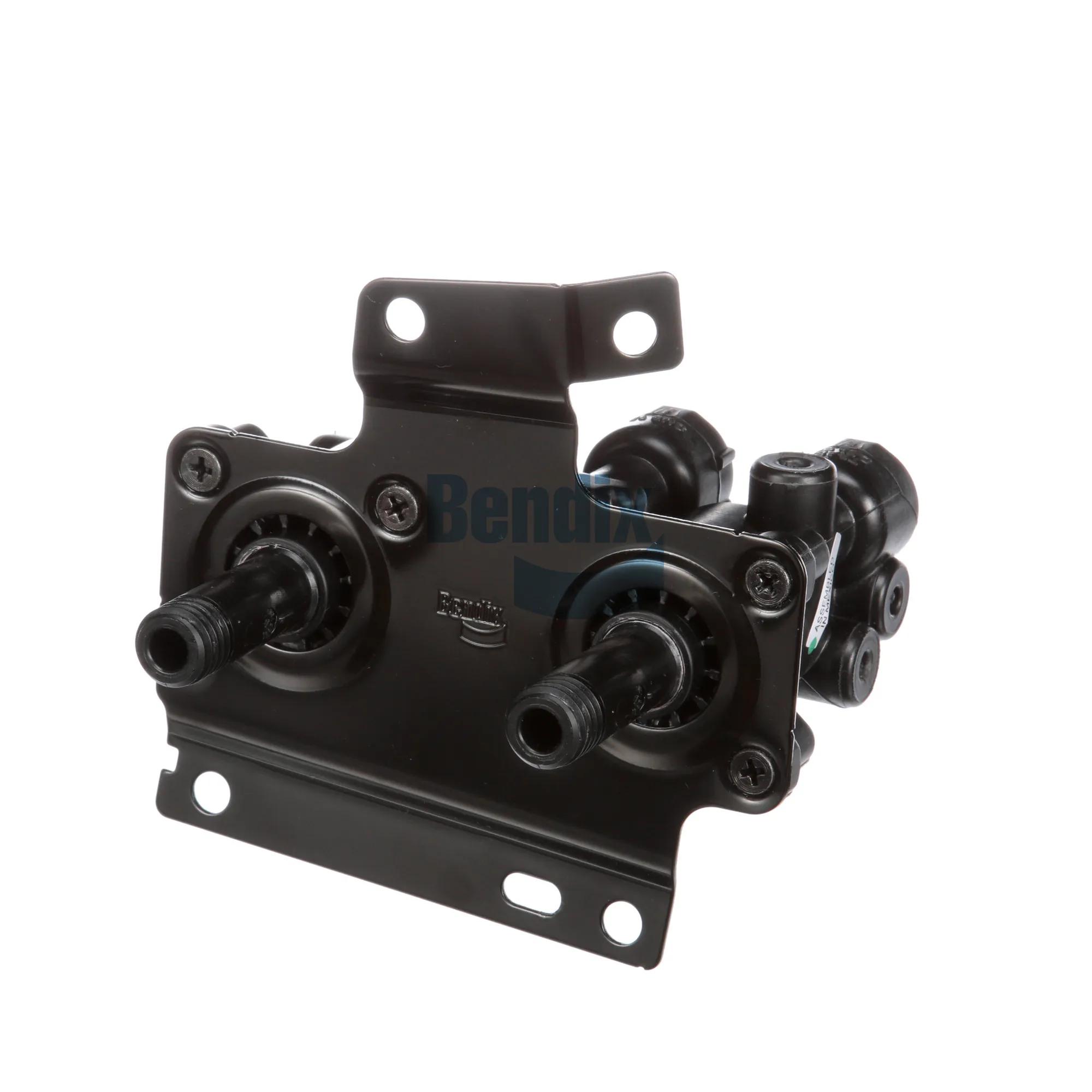

Bendix MV-3 Dash Control Valve with 3/8 in PTC Inlet and Outlet Ports
#BENK035691
Product Overview
Designed as a two-button, push-pull control valve, the Bendix MV-3 air brake manifold control valve functions similarly to a two- or three-valve push-pull system, with the advantage of reduced plumbing. This new service valve is manufactured to stringent standards to ensure the highest quality and performance.Dash Valve, 3/8 in PTC x 3/8 in PTC Inlet, 3/8 in PTC x 3/8 in PTC Outlet, -40 °F Temperature Rating, 135.4 mm Height, 125.7 mm Length, 133.4 mm Width
Features & Benefits
- Housed in a single body that accommodates dual circuit supply through a double check valve
- Receives air supply from the primary or the secondary service reservoir, whichever is at the higher pressure
- Consists of a valve body, plungers, and spools made of non-metallic, noncorrosive material to ensure longer service life
Specifications
| Hauteur | 135,4 mm |
| Longueur | 125,7 mm |
| Modèle | MV-3 |
| Neuf ou remanufacturé | Neuf |
| Code VMRS | 013-010-050 |
| Poids | 1,4 lb (0,63 kg) |
| Largeur | 133,4 mm |
| Méthode d'actionnement | À deux boutons, pousser-tirer |
| Body Material | Matériau non métallique et non corrosif |
| Inlet Size | 3/8 po PTC x 3/8 po PTC |
| Outlet Size | 3/8 po PTC x 3/8 po PTC |
| Temperature Rating | -40 °F |
| Type | Valve de commande de tableau de bord |
| Product Category | Valve de tableau de bord |
Interchanges & Equivalent parts:
| 21315044 |
| 21750583 |
| 745-K035691 |
| BANK035691 |
| BW K035691 |
| BW K035691 |
| BXK035691 |
| S-23871 |
| K035691 |
