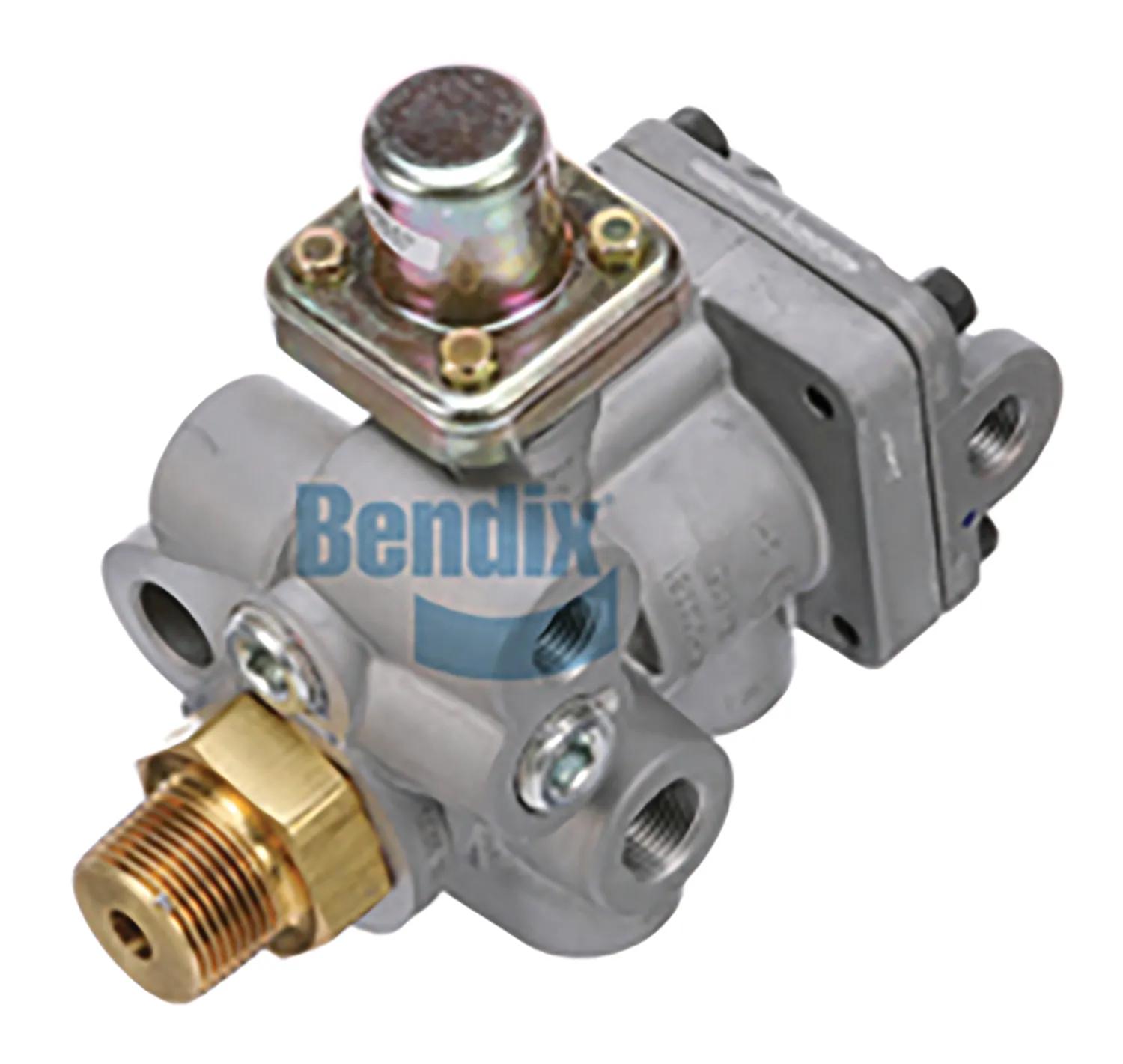

Bendix SR-2 Spring Brake Valve with 3/8-18 NPT Outlets
#BENK033216
Product Overview
The Bendix SR-2 air brake spring brake modulating valve is the ideal replacement valve for your repair and maintenance project. Bendix engineers and tests this product using state-of-the-art technology to ensure the highest quality, maximum performance, and reliability.Spring Brake Valve, NPT Outlet, 3/8-18 x 3/8-18 x 3/8-18 x 3/8-18 Outlet, ADR 38 Regulatory Compliance, -40 °F Temperature Rating, 141 mm Height, 154.7 mm Length, 76.2 mm Width
Features & Benefits
- Used primarily to control both the parking and emergency brake functions of the spring brakes in the trailer spring brake system
- Automatically applies trailer spring brakes and protects trailer reservoir air pressure whenever there's a breakaway or trailer supply line failure
- Prevents the automatic application of the trailer spring brakes in case of trailer service reservoir pressure loss
Specifications
| Model | SR-2 |
| New or Remanufactured | New |
| Weight | 2.88 lbs (1.31 kg) |
Interchanges & Equivalent parts:
| BEN102761N |
| 745-K033216 |
| BW K033216 |
| BWOK033216 |
| BXK033216 |
| FS102761N |
| FS102761X |
| K033216BXW |
| K033216 |
