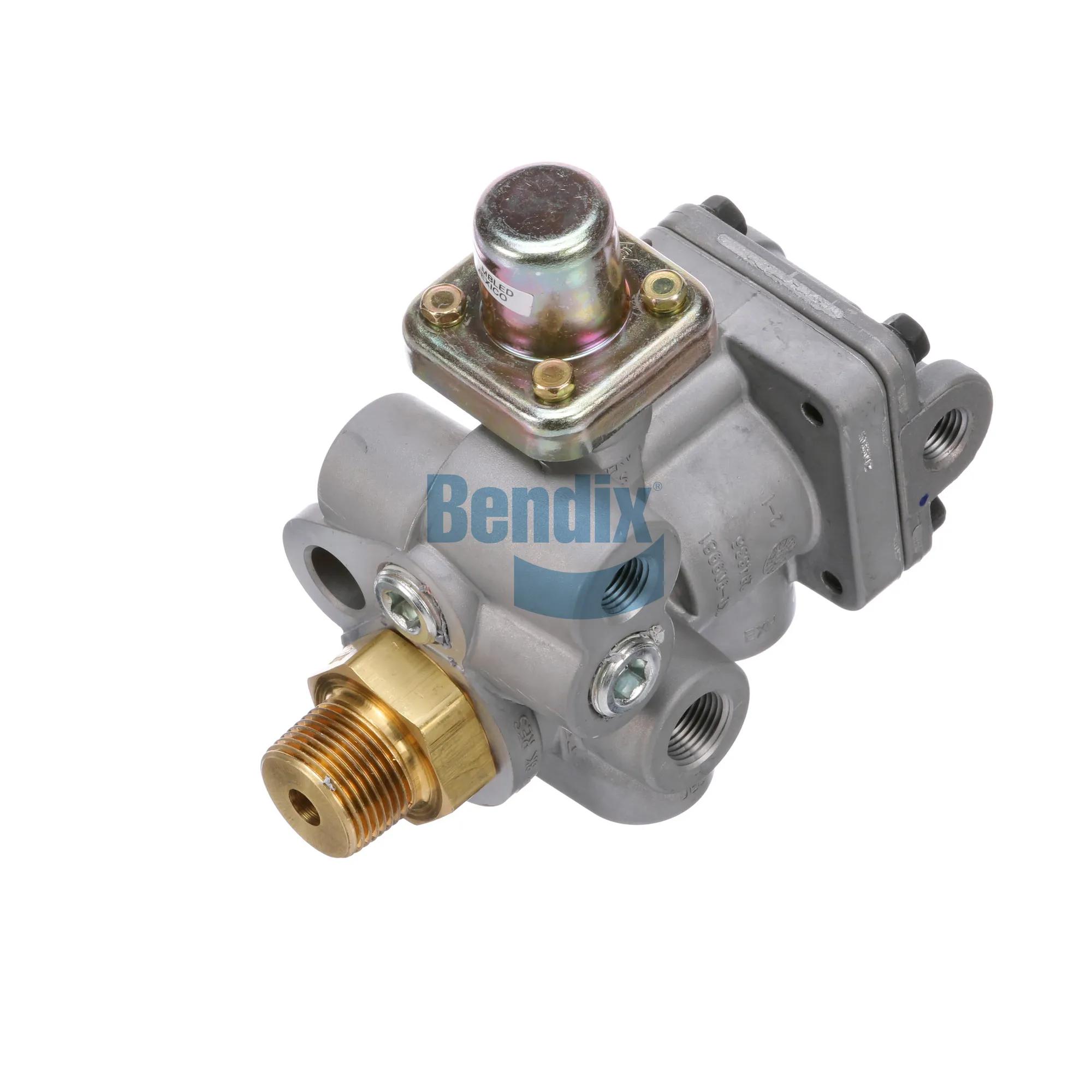

Bendix SR-2 Spring Brake Valve with 3/8-18 NPT Outlets

#BENK033216

Product Overview

The Bendix SR-2 air brake spring brake modulating valve is the ideal replacement valve for your repair and maintenance project. Bendix engineers and tests this product using state-of-the-art technology to ensure the highest quality, maximum performance, and reliability.Spring Brake Valve, NPT Outlet, 3/8-18 x 3/8-18 x 3/8-18 x 3/8-18 Outlet, ADR 38 Regulatory Compliance, -40 °F Temperature Rating, 141 mm Height, 154.7 mm Length, 76.2 mm Width

Features & Benefits

Used primarily to control both the parking and emergency brake functions of the spring brakes in the trailer spring brake system

Automatically applies trailer spring brakes and protects trailer reservoir air pressure whenever there's a breakaway or trailer supply line failure

Prevents the automatic application of the trailer spring brakes in case of trailer service reservoir pressure loss

Specifications

Application	Controls parking and emergency brake functions of trailer spring brakes
Height	141 mm
Length	154.7 mm
New or Remanufactured	New
Temperature Rating	-40 °F
VMRS Code	013-010-111
Weight	2.88 lbs
Width	76.2 mm
Outlet Size	3/8-18 x 3/8-18 x 3/8-18 x 3/8-18
Outlet Type	NPT
Regulatory Compliance	ADR 38
Series	SR-2
Product Category	Spring Brake Valve

Interchanges & Equivalent parts:

BEN102761N

745-K033216

BW K033216

BWOK033216

BXK033216

FS102761N

FS102761X

K033216BXW

K033216
