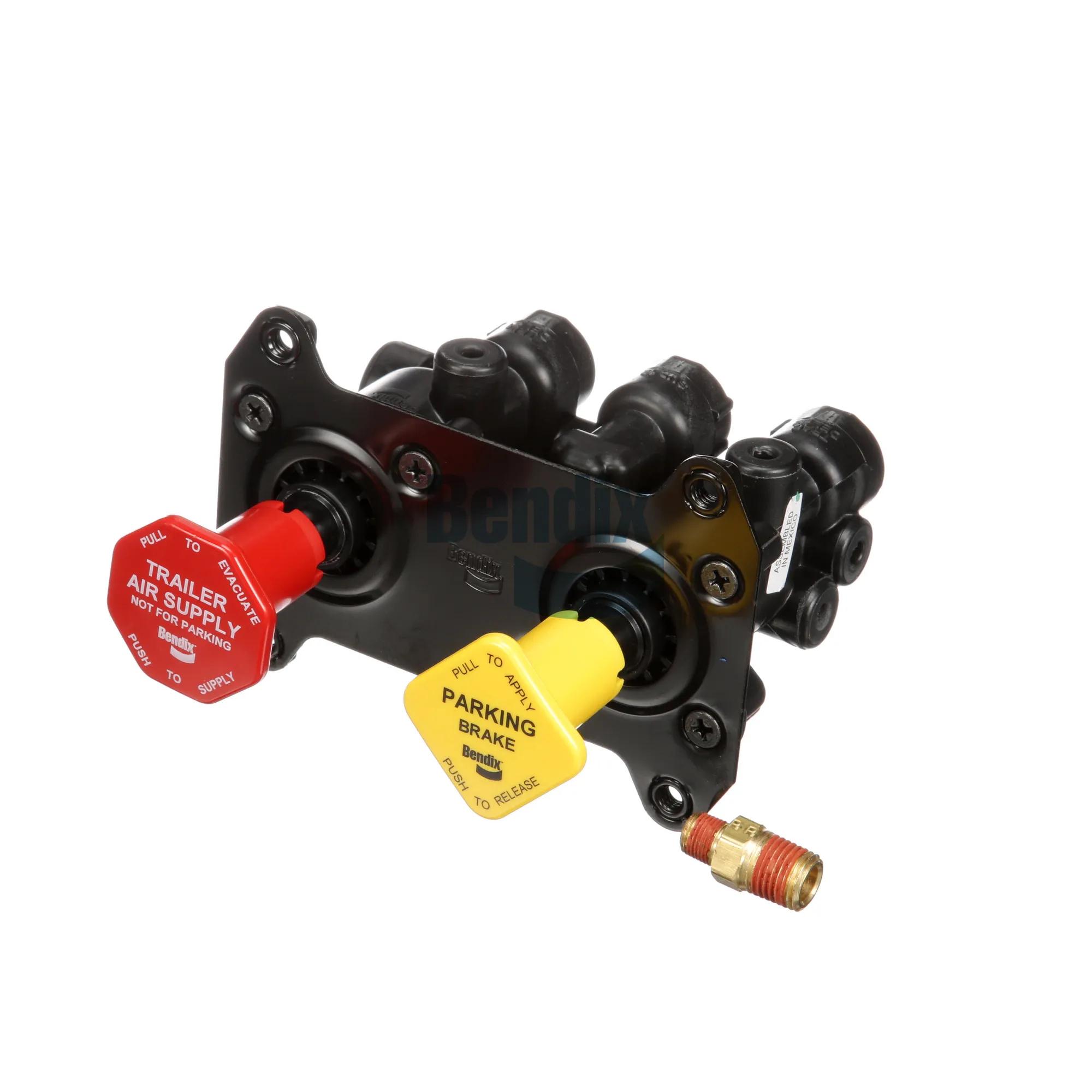

Bendix MV-3 Control Module Valve, 1/4-18 NPT Ports, New
#BEN800519
Product Overview
Dash Valve, 1/4-18 NPT x 1/4-18 NPT Inlet, 1/4-18 NPT x 1/4-18 NPT Outlet, -40 °F Temperature Rating, 91.9 mm Height, 128.5 mm Length, 136.2 mm Width
Features & Benefits
- Manufactured to Meet or Exceed O.E.M. Specifications in Function, Form & Fit.
- Repair Kits Also Available to Alleviate Changing the Entire Manifold Valve Assembly.
- Bendix Has Been A Trusted Manufacturer & Supplier to Most Truck & Trailer O.E.M.s for Decades.
Specifications
| Bolt Hole Diameter | 1/4-20 THD |
| Distance Between Mounting Holes | 4.21 in. |
| Exhaust Port Size | 1/4-18 NPT |
| Height | 91.9 mm |
| Length | 128.5 mm |
| Model | MV-3 |
| Mounting Hole Sizes | (4) 1/4-20 in. Threaded |
| Mounting Orientation | Horizontal |
| New or Remanufactured | New |
| Package Contents | (1) Manifold Valve Per Box |
| Primary Supply Port (in.) | 1/4-18 NPT |
| Repair Kit # | BEN107216 or BEN5002741 (Maintenance Kit), BEN107217 or BEN5002742 (Shuttle Kit) |
| Secondary Supply Port | 1/4-18 NPT |
| Tractor Delivery Port Size | 1/4-18 NPT |
| Tractor Trip Pressure | 20-40 psi |
| Trailer Delivery Port Size | 1/4-18 NPT |
| Trailer Override Pressure | 20-30 psi |
| Trailer Trip Pressure | 20-45 psi |
| VMRS Code | 013-010-050 |
| Weight | 1.57 lbs (0.71 kg) |
| Width | 136.2 mm |
| Connection Type | 1/4-18 NPT |
| Inlet Size | 1/4-18 NPT x 1/4-18 NPT |
| Outlet Size | 1/4-18 NPT x 1/4-18 NPT |
| Temperature Rating | -40 °F |
| Type | Control Module Valve |
| Product Category | Dash Valve |
Interchanges & Equivalent parts:
| 3949780 |
| 800519BXW |
| BAN800519 |
| BW 800519 |
| BX-800519 |
| BX800519 |
| S-16930 |
| ZAC800519 |
| 065186 |
| H800519X |
| BW 800519 |
| TV800519TEC |
| 401824 |
| BEN800519 |
| RKN20611 |
| TV800519 |
| 745-800519 |
| AV065186 |
| K065186 |
| SAP800519 |
| TLA800519 |
| TWDBEN800519 |
| TWDH800519X |
| WA800519 |
| WA800523 |
