Haldex Full Function FF2 Core Free Trailer Valve with 3/8 in Inlet and Outlet
#MIDKN28600RX
Sommaire du produit
Haldex develops and manufactures brake systems for heavy trucks, trailers, and buses. The product offering covers all primary components and subsystems included in complete air brake systems. This remanufactured FF2 full function trailer valve is core free and designed for reliable performance in heavy-duty applications.Trailer Valve, Full Function, Body Configuration: Supply, Control, Delivery, (4) Reservoir, Spring Brake, 3/8 in Inlet, 3/8 in Outlet, 3 psi Pressure
Caractéristiques et avantages
- Trailer Valve
- Releases Parking Brakes
- Applies Service Brakes
- Protects Line to 70 P.S.I.
- Has Anti-Compounding Feature
- Remanufactured FF2 - full function trailer valve - corefree™

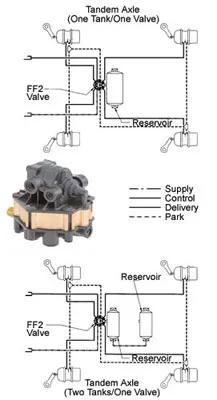

- Can be used with single or twin air tanks
- Valve combines a pressure protection valve, two one-way check valves, spring brake valve with quick release, and a four port relay valve
- 3/4 in reservoir
- 1/4 in control
- 3/8 in spring brake port
- Approximate weight 3 lbs
Spécifications
| Model | FF-2 |
| Supply Port (in.) (1) | (1) 3/4 in. Mounting Nipple |
| Type | FF2 Core Free |
Interchanges et pièces équivalentes:
| KN28600 |
| KN28600RX |
| KN28600X |
| 5396-KN28600RX |
| 767653317113 |
| MIDKN28600RX |
| N4304AC |
| 170KN28600 |
