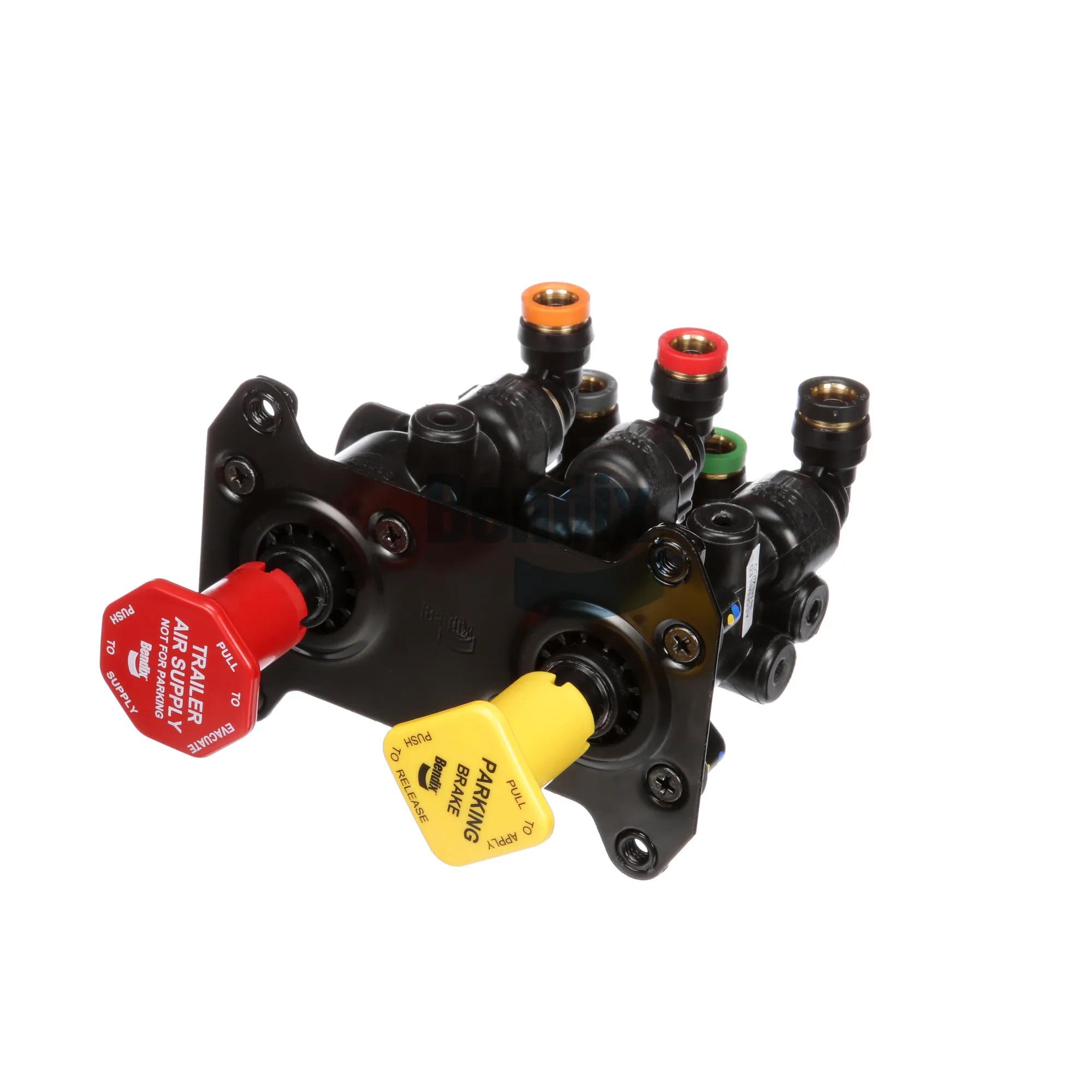

Bendix MV-3 Dash Valve, 3/8 in Inlet and Outlet, Push-Pull Air Brake Manifold Control Valve
#BENK031485
Product Overview
Designed as a two-button, push-pull control valve, the Bendix MV-3 air brake manifold control valve functions similarly to a two- or three-valve push-pull system, with the advantage of reduced plumbing. This service new valve is manufactured to stringent standards to ensure the highest quality and performance.Dash Valve, 3/8 in (90 deg Extended Elbow/Composite/Green Cap) x 3/8 in (90 deg Elbow/Composite/Red Cap) Inlet, 3/8 in PTC (90 deg Elbow/Composite/Orange Cap) x 3/8 in PTC (90 deg Elbow/Composite/Black Cap) Outlet, -40 °F Temperature Rating, 91.9 mm Height, 169.2 mm Length, 136.2 mm Width
Features & Benefits
- Housed in a single body that accommodates dual circuit supply through a double check valve
- Receives air supply from the primary or the secondary service reservoir, whichever is at the higher pressure
- Consists of a valve body, plungers, and spools made of non-metallic, noncorrosive material to ensure longer service life
Specifications
| Bolt Hole Diameter | 1/4-20 THD |
| Exhaust Port Size | 3/8 PTC Elbow Tall |
| Height | 91.9 mm |
| Length | 169.2 mm |
| Model | MV-3 |
| New or Remanufactured | New |
| Primary Supply Port (in.) | 3/8 PTC Elbow Tall |
| Secondary Supply Port | 3/8 PTC Elbow Short |
| Tractor Delivery Port Size | 3/8 PTC Elbow Short |
| Tractor Trip Pressure | 20-40 psi |
| Trailer Delivery Port Size | 3/8 PTC Elbow Short |
| Trailer Override Pressure | 20-30 psi |
| Trailer Trip Pressure | 20-45 psi |
| VMRS Code | 013-010-050 |
| Weight | 1.95 lbs (0.88 kg) |
| Width | 136.2 mm |
| Body Material | Non-metallic, noncorrosive material |
| Inlet Size | 3/8 in (90 deg Extended Elbow/Composite/Green Cap) x 3/8 in (90 deg Elbow/Composite/Red Cap) |
| Outlet Size | 3/8 in PTC (90 deg Elbow/Composite/Orange Cap) x 3/8 in PTC (90 deg Elbow/Composite/Black Cap) |
| Temperature Rating | -40 °F |
| Type | Push-Pull |
| Product Category | Dash Valve |
Interchanges & Equivalent parts:
| K031484 |
| S-23874 |
| K031485 |
