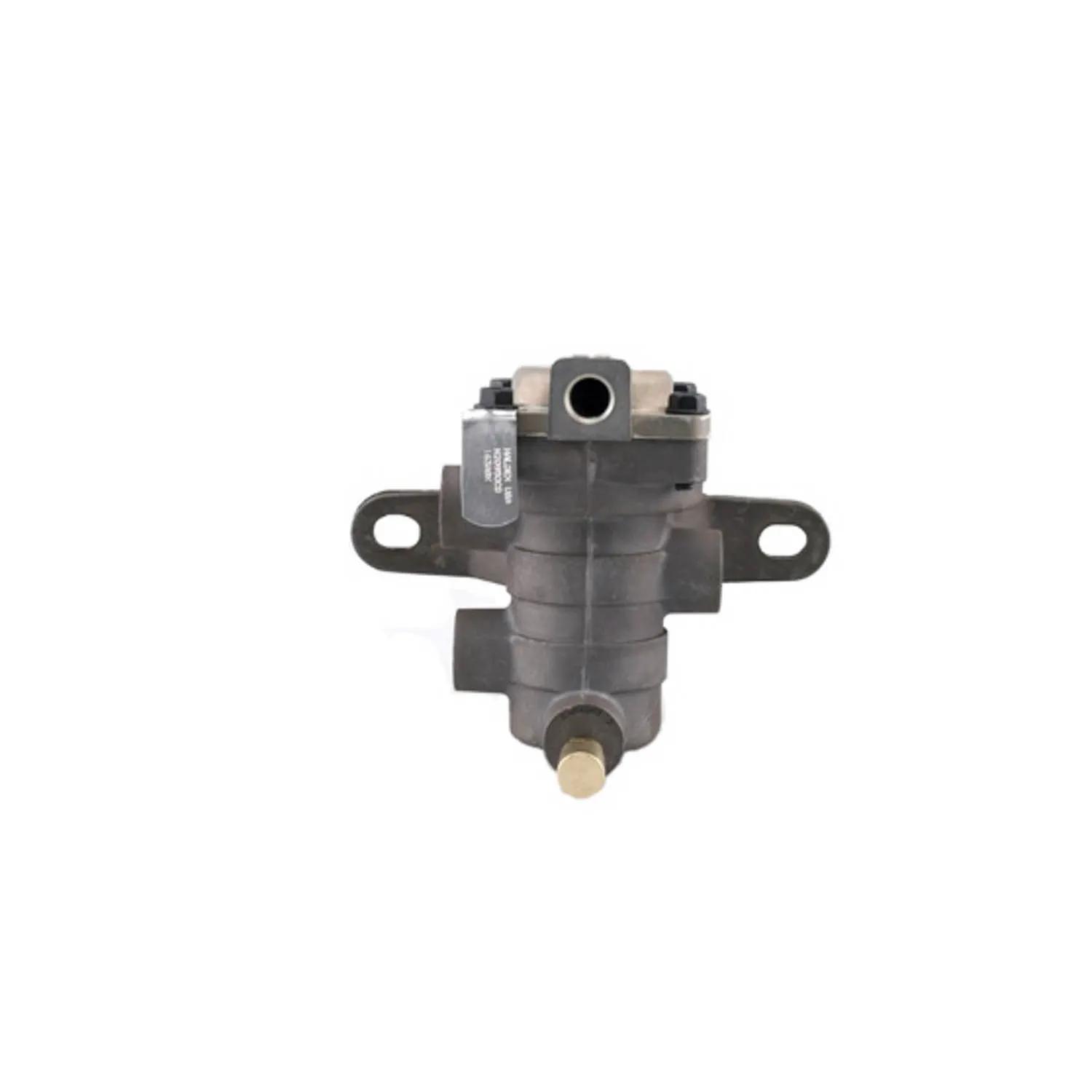

Haldex Air Inversion Valve, 1/4 in Inlet and Outlet, Heavy Duty Truck
#MIDKN28032
Product Overview
Haldex develops and manufactures brake systems for heavy trucks, trailers, and buses. The product offering covers all primary components and subsystems included in complete air brake systems. This inversion valve is designed for use with spring brake equipped trucks or tractors, complying with FMVSS-121 regulations effective March 1998. It detects primary control line failure, allowing modulated control of spring brakes, and is interchangeable with competitive models without the anti-compounding feature.
Features & Benefits
- Manufactured to Meet or Exceed O.E.M. Specifications in Function, Form & Fit.
- Used with spring brake equipped truck or tractors
- Complies with FMVSS-121 regulations effective March 1998
- Detects primary control line failure, allowing modulated control of spring brakes
- Interchangeable with competitive models without anti-compounding feature
- 4.65 in to 5.00 in mounting centers
- 1/4 in control
- Approximate weight 1.7 lbs
Specifications
| Application | Universal Truck & Tractor |
| Inversion Valve Repair Kit Part # | RN10JT |
Interchanges & Equivalent parts:
| 843042262 |
| N20950CA |
| N20950CB |
| KN28032 |
| RKN28032 |
| 9718990020 |
| 9718990060 |
| KN28032X |
| N20950CC |
| 5396-KN28032 |
| 767653149363 |
| 971 899 002 0 |
| MBIKN28032 |
| MIDKN28032 |
| R955KN28032X |
| 130571 |
| 843-042262 |
| KN28033 |
| 594507D901 |
