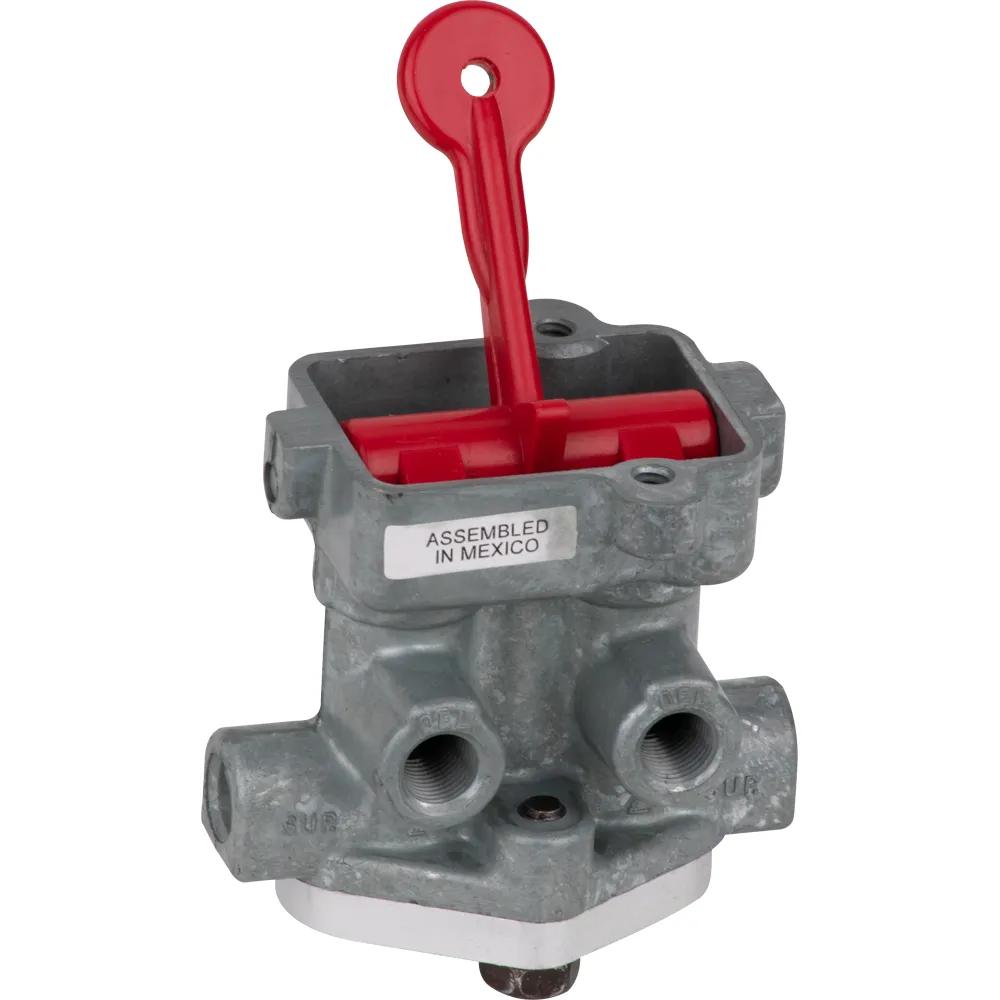

Bendix TW-2™ Dash Control Valve, 2-Position Lever, 1/8-27 NPT Inlet & Outlet Ports
#BEN280905N
Product Overview
Maintain the performance, reliability, and safety of your truck's air brake system with the Bendix TW-2™ air brake control valve. Each Bendix valve is designed and tested to reflect today’s highest engineering standards and comply with all federal safety regulations.Control Valve, 2-Position, 1/8-27 NPT x 1/8-27 NPT Inlet, 1/8-27 NPT x 1/8-27 NPT Outlet, -40 °F Temperature Rating, 114.6 mm Height, 54.1 mm Length, 69.1 mm Width
Features & Benefits
- A lever-operated control valve with two lever positions
- Has two control valves housed in a single body
- Engineered using state-of-the-art technology for guaranteed efficiency even under extreme conditions
Specifications
| Port de livraison (po) (1) | 2 po |
| Hauteur | 4,51 po |
| Longueur | 20-5/8 po |
| Neuf ou remanufacturé | Neuf |
| Orifice d'alimentation (po) (1) | 2 po |
| Code VMRS | 013-010-477 |
| Poids | 0,79 lb (0,36 kg) |
| Largeur | 2,72 po |
| Méthode d'actionnement | Levier |
| Matériau de la carrosserie | Métal |
| Modèles compatibles | TW-2 |
| Taille de l'entrée | 1/8-27 NPT x 1/8-27 NPT |
| Taille de sortie | 1/8-27 NPT x 1/8-27 NPT |
| Température nominale | -40 °F |
| Type | 2 positions |
| Catégorie de produit | Vanne de commande |
Interchanges & Equivalent parts:
| 280905 |
| BEN280905 |
| H280905X |
| 280905BXW |
| BAN280905N |
| BW 280905N |
| BW 280905N |
| BX280905N |
| BEN280905N |
| 170.280905 |
| 745-280905N |
| TWDBEN280905N |
| 280905N |
