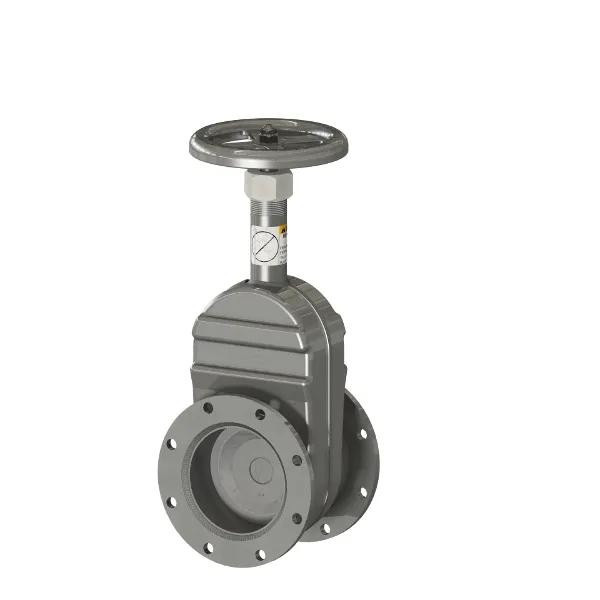

4 in Steel Manual Gate Valve, TTMA Flange x TTMA Flange
Product Overview
The Betts gate valve is an economical manually operated external stop valve featuring a double action hand wheel for efficient closure. It includes standard 316 stainless steel discs for premium corrosion resistance and an adjustable packing nut with woven PTFE-infused packing for easy stem adjustments. The metal-to-metal seal offers advantages for many applications but may be susceptible to wear and scratches. For applications requiring a maintainable seal, consider Betts' line of replaceable O-ring seat gate valves.Gate Valve, Wheel Handle, TTMA Flange Inlet, TTMA Flange Outlet, Manual, Steel, PTFE Seal, Steel Stem, 200 psi Burst Pressure Rating, 4 in Inlet, 4 in Outlet, 50 psi Pressure Rating, -40 to 500 °F Temperature Rating, 5.25 in Width
Features & Benefits
- Economical manual external stop valve
- Double action hand wheel for efficient closure
- Standard 316 stainless steel discs for corrosion resistance
- Adjustable packing nut with woven PTFE-infused packing
- Metal-to-metal seal design
- Suitable for various tanker applications
Specifications
| Body Material | Steel |
| Burst Pressure Rating | 200 psi |
| Handle Type | Wheel |
| Inlet Size | 4 in |
| Inlet Type | TTMA Flange |
| Outlet Size | 4 in |
| Outlet Type | TTMA Flange |
| Pressure Rating | 50 psi |
| Seal Material | PTFE |
| Stem Material | 316 Stainless Steel |
| Temperature Rating | -40 to 500 °F |
| Valve Type | Manual |
| Width | 5.25 in |
| Product Category | Gate Valve |
| Weight | 13.1 lb |
