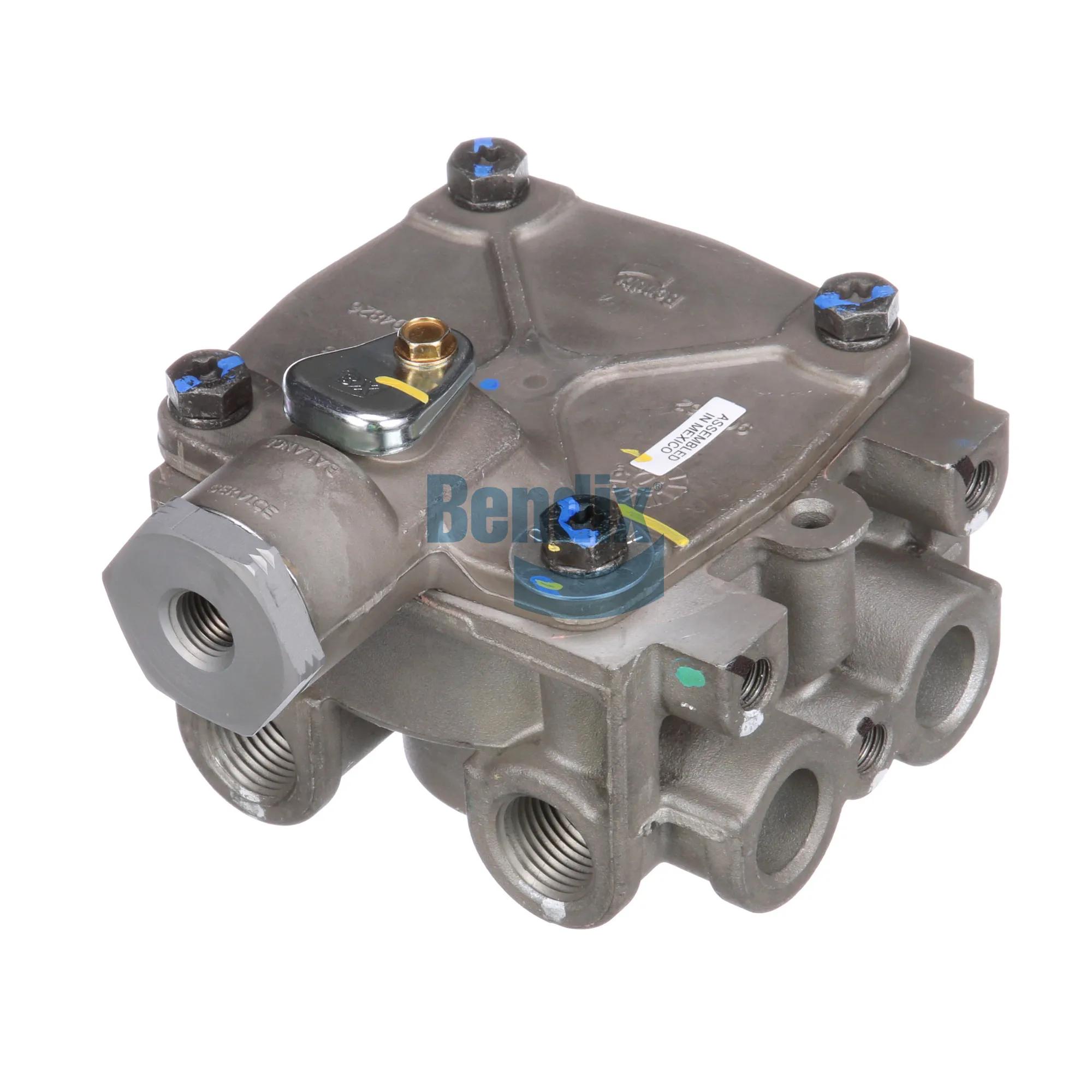

Bendix Relay Valve R-14, New, 1/2 NPT Inlet and Outlet, 1/4 NPT Control Port

#BEN801629

Product Overview

Our products are engineered and tested to provide years of trouble-free operation. Backed by over 50 years of mobile A/C experience, fix it once and fix it right.Relay Valve, NPT Inlet, NPT Outlet, 2 Supply/5 Delivery (5H) Body Configuration, 1/2-14 x 1/2-14 Inlet, 1/2-14 x 1/2-14 x 1/4-18 Outlet, 4.0 psi Pressure Rating, -40 °F Temperature Rating, 113 mm Height, 138 mm Length, 101 mm Width

Features & Benefits

All Universal Bendix R-12 and R-14 Relay Valves include installation instructions and a Universal Mounting Bracket as indicated.

Manufactured to Meet or Exceed O.E.M. Specifications in Function, Form & Fit.

Specifications

Pression d'ouverture	4 psi (0,28 bar)
Orifice de livraison (po) (1) (A)	1/4 NPT
Port de livraison (po) (2)	1/2 NPT
Modèle	R-14
Neuf ou remanufacturé	Neuf
Orifice d'alimentation (po) (1)	1/2 NPT
Code VMRS	013-010-009
Poids	2,93 lb
Configuration de carrosserie	2 alimentation/5 refoulement (5H)
Hauteur	113 mm
Taille de l'entrée	1/2-14 x 1/2-14
Inlet Type	NPT
Length	138 mm
Mounting Type	Support de montage universel
Outlet Size	1/2-14 x 1/2-14 x 1/4-18
Outlet Type	NPT
Pressure Rating	4,0 psi
Temperature Rating	-40 °F
Width	101 mm
Product Category	Soupape de relais

Interchanges & Equivalent parts:

20QE4197

25174366

801629BXW

BAN801629

BW 801629

BX801629

ZAC801629

BEN801629

745-801629

TWDBEN801629
