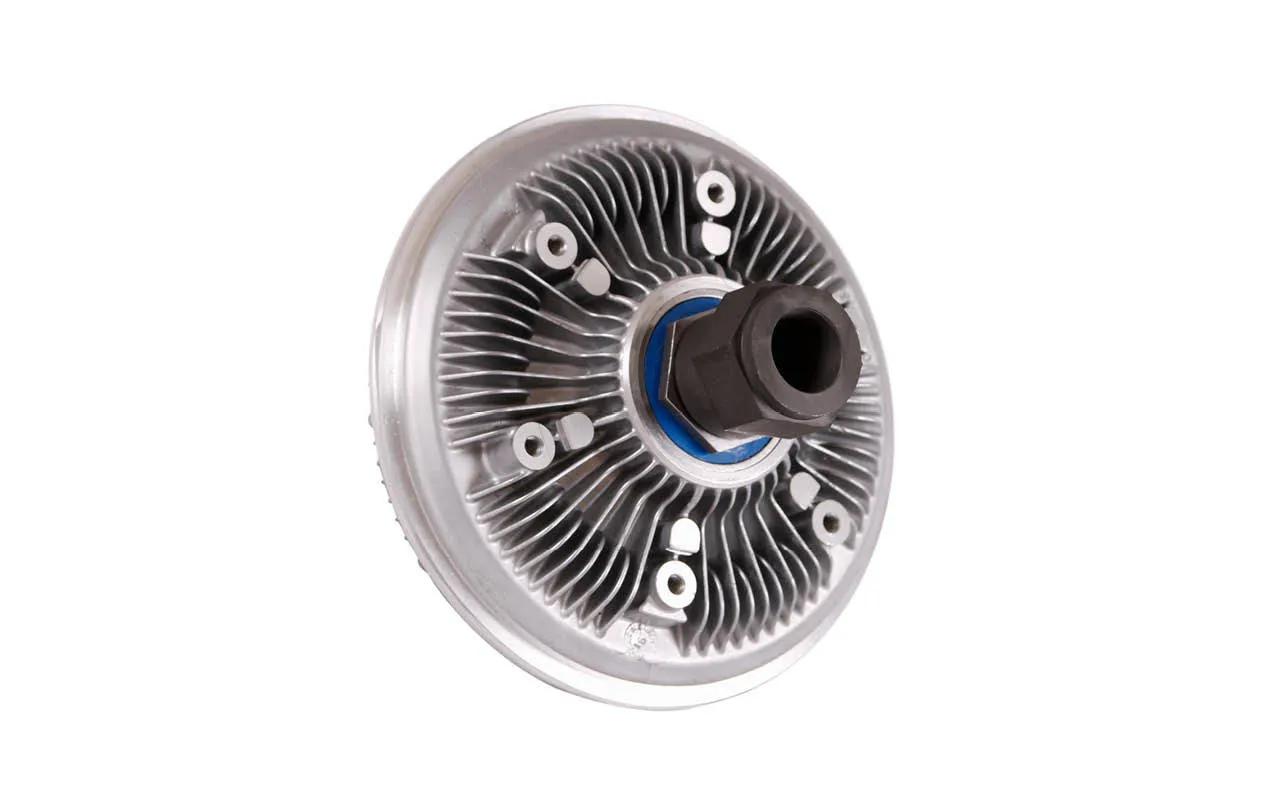

MODULAR VISCOUS FAN DRIVE
#KMRRV0410500-00
Product Overview
Spectrum Modular Viscous Fan Drives by Kit Masters are OEM quality fan drives that are ideal for medium duty vehicles due to their efficiency, performance and quiet operation.
Features & Benefits
- Viscous fan drives are cost-effective fan drives that control fan speed in direct proportion to engine cooling needs, which means no wasted horsepower or fuel. They are self-contained, meaning they do not require maintenance of any kind and there are no external controls required to operate.
- 1 Year/100,000 Mile Warranty
Specifications
| Diameter | 25 in (63.5 cm) |
| Length | 2-51/64 in (7.11 cm) |
| Mount Type | Spin-On |
| OEM Part # | 3552595C3, 3552595C1, 3522788C91, 3522788C3, 3522788C2, 2027495C1, 2021954C1, 2021376C1, 2004860C1, 2001023C1, 12100916805, 1210-09168-05, 12100915701, 1210-09157-01, 010021532, 010020805, 9903002, 9903001, 9902013, 9902012, 9902005, 9902004, 9803002, 9802013, 9802012, 9802005, 9802004, 169684, 169683, 169575, 167341, 167047, 167046, 166283, 166054, YB625, YB-625 |
| Overview | Proven Technology: Viscous fan drives are cost-effective fan drives that control fan speed in direct proportion to engine cooling needs, which means no wasted horsepower or fuel. They are self-contained, meaning they do not require maintenance of any kind and there are no external controls required to operate. Always in Stock: Authorized Spectrum distributors utilize a modular system to build fan clutches on demand. This allows them to have inventory on those hard to find (and even some obsolete) fan drives. |
| Pilot Diameter | 5 in (12.7 cm) |
| Rotation | CW |
| Warranty | 1 Year/100,000 Mile |
Interchanges & Equivalent parts:
| 010020805 |
| 1210-09157-01 |
| 1210-09168-05 |
| 166054 |
| 166283 |
| 167047 |
| 167341 |
| 169683 |
| 2001023C1 |
| 2004860C1 |
| 2021376C1 |
| 2027495C1 |
| 3522788C3 |
| 3522788C91 |
| 169575 |
| 169684 |
| 3552595C3 |
| 9802004 |
| 3552595C1 |
| 9802005 |
| 9802012 |
| 9802013 |
| 9803002 |
| ABP N20 RV041050000 |
| FLT41050000 |
| 167046 |
| 2021954C1 |
| 3522788C2 |
| RV0410500-00 |
