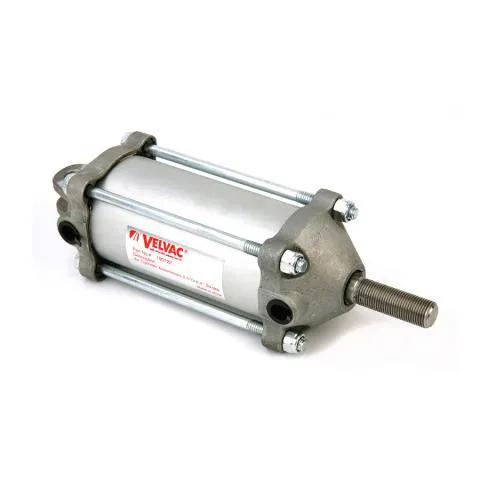

Air Cylinder, Body: 11 in, Diameter: 2-1/2 in, Stroke: 4 in, Extended Length: 13.89 in, Retracted Length: 9.89 in
#VEL100122
Product Overview
Air Cylinder, 13.89 in Extended Length, Function: Push/Pull, 9.89 in Retracted Length, 4 in Stroke, Tailgate Cylinders
Features & Benefits
- These cylinders can be used in a wide variety of applications and conditions and can take the daily abuse associated with typical tailgate applications.
- They are backed with a 1 year warranty and are 100% tested!
- Available in push/pull, solenoid operated and spring return versions
- 3-1/2 in air cylinders at 100psi have a thrust of 962lbs and a draw of 918lbs
Specifications
| Diamètre | 2-1/2 po |
| Longueur en extension | 13,89 po |
| Hauteur | 3.25 |
| Longueur rétractée | 9,89 po |
| Stroke | 4 po |
| Type | Pousser/Tirer |
| Weight | 3.02 |
| Width | 3.25 |
| Application | Hayon |
| Function | Pousser/Tirer |
| Size | 11 po |
| Style | Vérins de hayon |
| Length | 11 po |
| Product Category | Vérin pneumatique |
Interchanges & Equivalent parts:
| 100122 |
| U79100122 |
