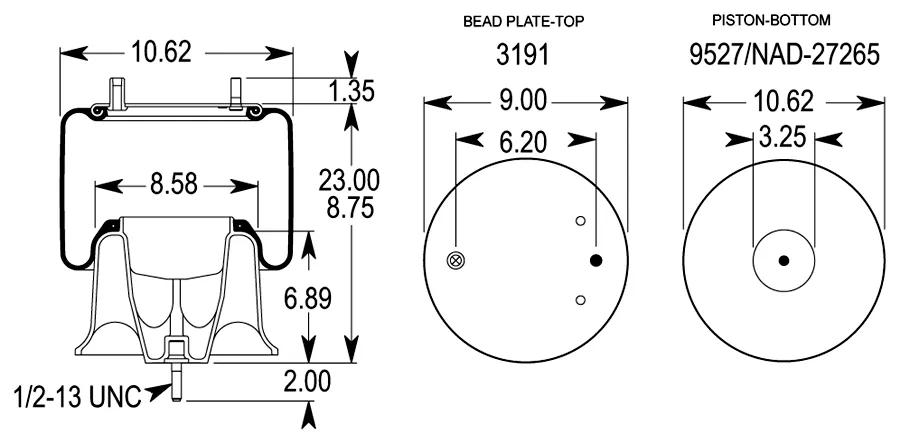

Air Spring - 1T Reversible Sleeve - 8-3/4 in Compressed Length - 23 in Extended Length - Firestone Airide X-SERIES

#FIRW01-358-9780

Product Overview


Although air springs are produced in single, double, triple convoluted, and reversible sleeve styles, only those manufactured by Firestone Industrial Products Company bear the trademark “Airide™.” Airide springs were pioneered and perfected by Firestone, and only Firestone offers a complete line of Airide springs, with replacement springs available for virtually every vehicular air suspension system. Today, Airide springs are used by practically all manufacturers who offer air suspension on their vehicles. While it may appear simple, an air spring is actually a highly sophisticated and complex product. Even slight changes in design, methods of construction, or materials used can make vast and significant differences in performance. It makes good sense to specify Airide springs by Firestone. That trade name on an air spring guarantees you the benefit of the very latest technical developments and improvements. It is your assurance of a product not only engineered and perfected to perform, but which also has a long history of superior performance in actual use.Air Spring, 1T Reversible Sleeve Air Spring, 8-3/4 in Compressed Length, 23 in Extended Length, 10.62 in Width

See More
See Less

Features & Benefits


  • Manufactured to Meet or Exceed O.E.M. Specifications in Function, Form & Fit.
  • Today, Airide Springs are Used by Practically All Manufacturers Who Offer Air Ride Suspensions on Their Vehicles.
  • Airide Springs Were Pioneered & Perfected by Firestone, and Only Firestone Offers a Complete Line of Airide Springs.

Specifications


Entrée d'air 1/4 po NPT
Type de ressort pneumatique Manchon réversible 1T
Application Freightliner 16-13810-000 (plastique), Freightliner 681-320-0017, (aluminium) Voir W01-358-9781, Freightliner Piston 16-1673-000 (acier) Voir W01-358-9782, A16-18335-000, A16-18335-001
Plaque de talon (haut) et soufflet dégonflé diamètre extérieur 9 po à 10,12 po
Soufflet 1T15ZR-6
Diamètre de la plaque inférieure 10-5/8 po
Configuration du montant inférieur 1/2 po-13 UNC
Longueur comprimée 8-3/4 po
Diamètre 10-5/8 po
Longueur en extension 23 po
Numéro de soufflet Firestone 1T15 X-SERIES (Remplace 1T15ZR-6)
Capacité de chargement à 20 psig 1600 lb-pi
Capacité de chargement à 60 psig 4800 lb-pi
Capacité de chargement à 90 psig 7200 lb-pi
Matériel Caoutchouc naturel
Hauteur de piston 6-57/64 po
Température 57°C à -54°C (134.6°F à -65.2°F)
Top Bead Plate Hardware Key Boulon ou goujon 1/2-13 po
Top Plate Diameter 9 po
Weight 16,6 lb (7,53 kg)
Width 10,62 po
Product Category Ressort pneumatique

Interchanges & Equivalent parts:


1R12-303
1R12186
1R12303
352-9780
352-9780AG
AB9780
AS-8382
ZAGA9780
1 DK 23 K-9780
1000-AS9780
16-13810-000
16-13810-001
16-13810-002
16-1673-000
16-19468-000
1R12 603
1R12-186
1R12-189
1T15ZR-3
681 320 00 17
9.10 S-16 A382
910S-16P382
A16-14004-000
A16-14004-001
A16-18335-000
A16-20111-001
ABP N32 018537
AS PR9MR16-9780
AS-8382P
AS-8999P
AS8382
AS9780
FLT1R12303
FLTA1R12303
FS9780
FSIW013589780
GTK-358-9780
RC AS9780
REAW013589780
S-20991
TAS9780
TR9780
TWDW013589780
W01-377-9736
W01-377-9758
W01-377-9784
W01-377-9785
W013589780
1619468000
6813200017
W013778530
W013778537
16-14366-000
16-14377-000
16-15595-000
16-16528-000
16-16529-000
16-16773-000
16-16825-000
1613801000
1613810000
1613810001
1613810002
1614366000
1614377000
1615595000
1616528000
1616529000
1616773000
VM1-9780
1616825000
9 10S-16 P 382
9758
VM19780
W01-377-8528
W01-377-8530
W01-377-8537
W01-377-9786
W01-377-9787
W01-377-9789
W013778528
W013779758
W013779784
W013779785
W013779786
W013779787
W01377978
1R12-603
681-320-0017
A16-18335-001
