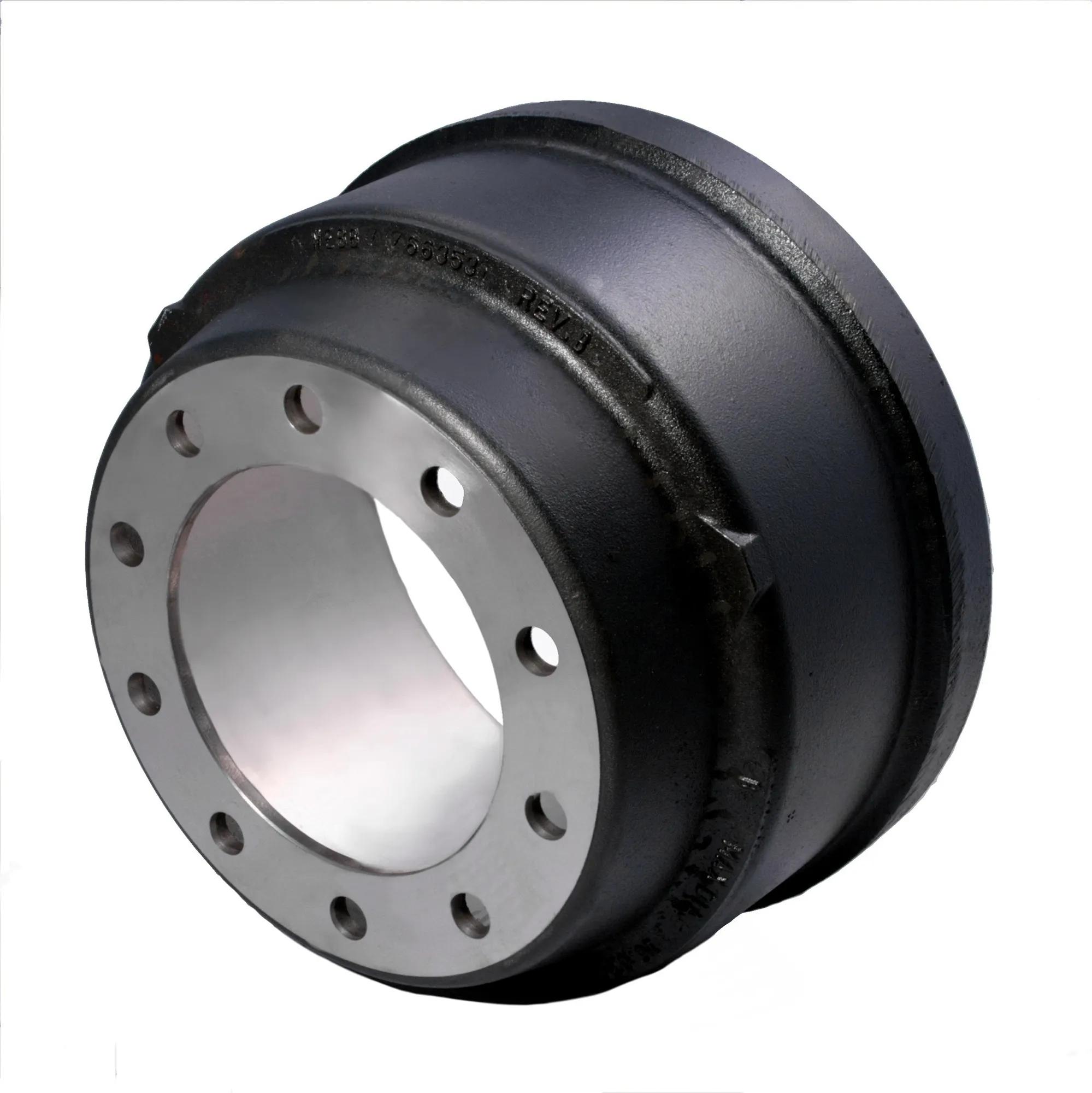

Tambour de frein, 16-1/2 po x 7 po, 10 holes, (112,92 lb)
#WEB66353B20
Caractéristiques et avantages
- Backed by a nationwide warranty and the best product support in the business
- Webb Wheel Products is your OE first-fit and aftermarket heavy-duty wheel-end component parts leader
- Manufactured in IATF 16949 or ISO 9001 registered facilities
Spécifications
| Épaisseur de la plaque arrière | 1/2 po |
| Diamètre du cercle de perçage | 11-1/4 po |
| Trou de boulon (nombre) | 10 |
| Largeur de segment de frein | 7 po |
| Brake Size | 16-1/2 po x 7 po |
| Brake Surface Diameter | 16-1/2 po |
| Brake Surface Width | 7-7/16 po |
| Drum Mounting | Extérieur |
| Drum Type | BEA |
| Dust Shield Recess Depth (C) | 41/64 po |
| Dust Shield Recess Diameter (B) | 17-7/8 po |
| Hole Size | 1 po |
| Maximum Diameter | 16-5/8 po |
| Overall Depth | 11-3/16 po |
| Overall Diameter | 18-11/16 po |
| Pilot Diameter | 8-25/32 po (22,31 cm) |
| Sidewall Offset (N) | 3-55/64 po |
| Squealer Band Width (K) | 2 po |
| Type | Moulé |
| VMRS Code | 013-017-006 |
| Weight | 111 à 115 lb |
| Poids (lb) | 51,22 kg (112,92 lb) |
| Largeur | 7 po |
