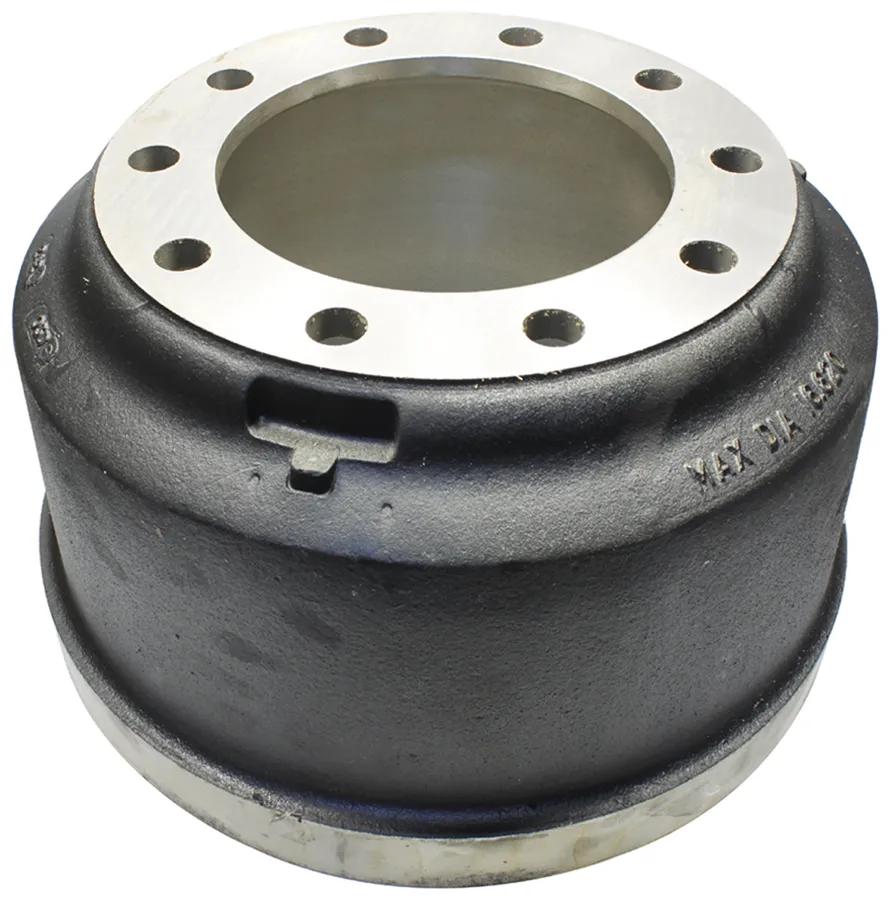

Brake Drum, 16-1/2 in x 8-5/8 in, 10 holes, (127,15 lb)
#GUN3807X
Features & Benefits
- All Gunite Brake Drums & Disc Brake Rotors Are Fully Protected by One of the Industrys Most Comprehensive Warranties on Material and Workmanship.
- Manufactured to Meet or Exceed O.E.M. Specifications in Function. Form & Fit.
- Gunite Brake Drums & Disc Brake Rotors Are Available Nationwide Through Over 400 Independent Warehouse Distributors. and Various O.E.M. Dealer Networks.
- Gunite Brake Drums & Rotors Offer a Level of Engineering Quality That Meets or Surpasses the Requirements of Every Truck & Trailer Manufacturer.
- Gunite Offers the Industry's Most Complete Line of Brake Drums & Disc Brake Rotors.
Specifications
| Application | Essieux arrière de camion, Essieu de remorques, Bus |
| Capacité de l'essieu (lb) | 50 707 kg (23 000 lb) |
| Épaisseur de la plaque arrière | 9/16 po (1,44 cm) |
| Diamètre du cercle de perçage | 11-1/4 po (28,58 cm) |
| Trou de boulon (nombre) | 10 |
| Largeur de segment de frein | 8-5/8 po (21,92 cm) |
| Brake Size | 16-1/2 po x 8-5/8 po |
| Brake Surface Diameter | 16-1/2 po (41,91 cm) |
| Brake Surface Width | 9-5/64 po (23,06 cm) |
| Bridge Width | 8-5/8 po (21,91 cm) |
| Depth | 10-31/64 po (26,63 cm) |
| Drum Mounting | Extérieur |
| Drum Type | BDA |
| Dust Shield Recess Depth (C) | 51/64 po (2,03 cm) |
| Dust Shield Recess Diameter (B) | 17-3/8 po (44,14 cm) |
| Flange Thickness | 5/8 po (1,59 cm) |
| Height | 12 po (30,48 cm) |
| Hole Size | 1-3/32 po (2,78 cm) |
| Maximum Diameter | 16-5/8 po (42,23 cm) |
| Overall Depth | 9-5/64 po (23,06 cm) |
| Overall Diameter | 18-7/8 po (47,95 cm) |
| Packaging | Individuel / En vrac |
| Pilot Diameter | 8-25/32 po (22,31 cm) |
| Sidewall Offset (N) | 2-27/64 po (6,15 cm) |
| Squealer Band Width (K) | 2 po (5,08 cm) |
| VMRS Code | 013-017-006 |
| Weight | 121 à 130 lb |
| Weight (lbs) | 57,68 kg (127,15 lb) |
| Wheel Type | Disque |
| Width | 8-5/8 po (21,91 cm) |
Interchanges & Equivalent parts:
| 3807AX |
| 54229-018 |
| 66854B |
