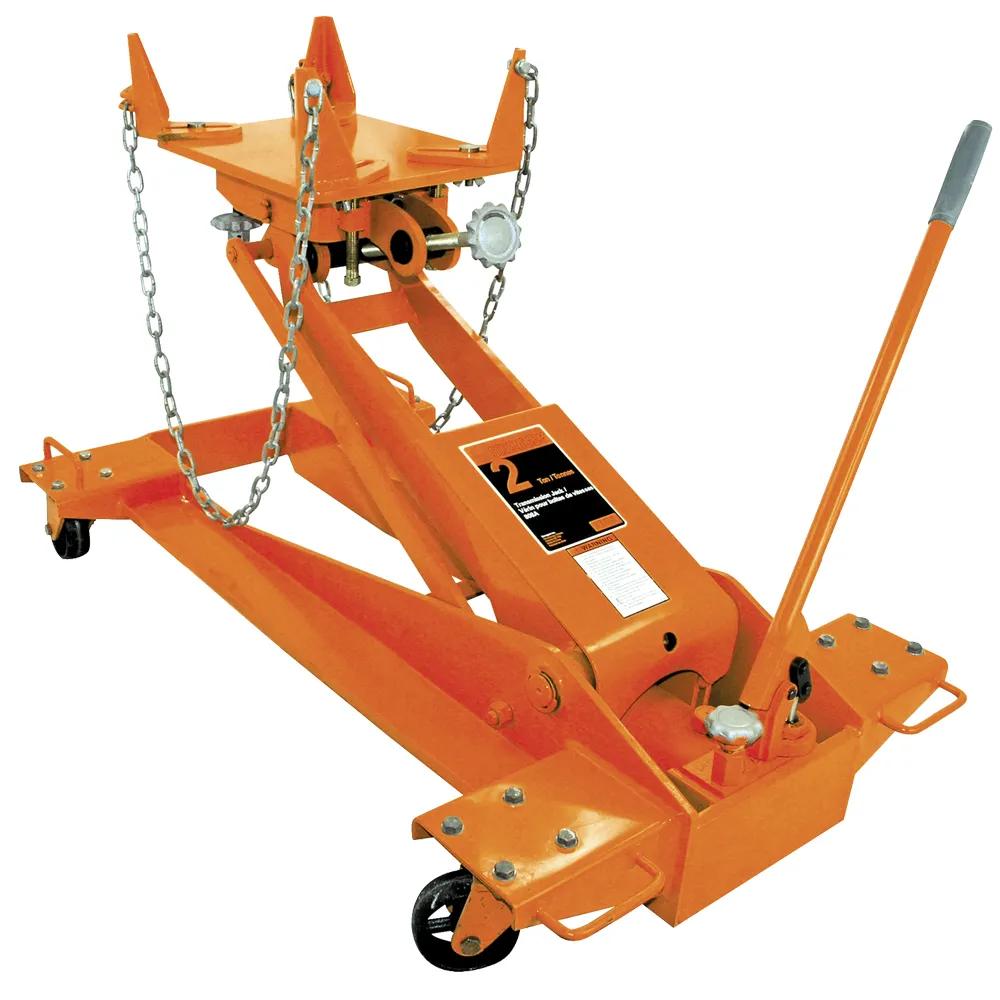

Strongarm 2 Ton Low Profile Super Heavy Duty Transmission Jack with Powder Coated Steel, 30° Backward Tilt
#STR030549
Product Overview
The low-profile transmission jacks by Strongarm® are constructed with high-grade steel and a powder-coat finish for strength and durability. The wishbone design provides an ultra-low-profile solution when removing or installing heavy-duty diesel truck transmissions, offering superior clearance and ease of use.Transmission Jack, Low Profile, Super Heavy Duty, Steel, Powder Coated, 30 deg Backward Tilt, 2 ton, 15 deg Forward Tilt, 8-1/2 in Lowered Height, 34 in Raised Height, Side Tilt: 12 deg
Features & Benefits
- STRONGARM offers the only Super Heavy Duty transmission jack with a full 2 ton Capacity
- Built to handle removal, transport and installation of transmissions, transfer cases or differentials on heavy duty trucks, buses, agricultural and construction equipment
- Wishbone design provides superior clearance and is ideal for all low-profile applications
- Fully adjustable universal saddle with corner brackets and safety chain
- 4-way tilting head allows convenient positioning for install and removal
- Adjustable corner brackets
- Convenient side trays for small tools and parts
- Safety overload bypass system to prevent hydraulic damage
- 32" handle pivots 360° around pump
- Rugged industrial grade 4" casters for maximum manoeuvrability
- Long handle pivots 360° around the pump
- Industrial-grade heavy-duty casters provide smooth travel
Specifications
| Backward Tilt (degree) | 30 deg |
| Base Dimensions (in.) | 26 in x 43 in |
| Capacity | 2 ton |
| Capacity (ton) | 2 T |
| Forward Tilt (degree) | 15 deg |
| Length | 48 in |
| Lowered Height (in.) | 8-1/2 in (21.59 cm) |
| Material | Steel |
| Model | 808A |
| Raised Height (in.) | 34 in (86.36 cm) |
| Side Tilt (degree) | 12 deg |
| Type | Low Profile, Super Heavy Duty |
| UPC | 59629994740 |
| Width | 28 in |
| Backward Tilt | 30 deg |
| Finish | Powder Coated |
| Forward Tilt | 15 deg |
| Height | 14 in |
| Lowered Height | 8-1/2 in |
| Raised Height | 34 in |
| Side Tilt | 12 deg |
| Product Category | Transmission Jack |
| Weight | 297 lb |
Interchanges & Equivalent parts:
| 808A |
| STR030459 |
