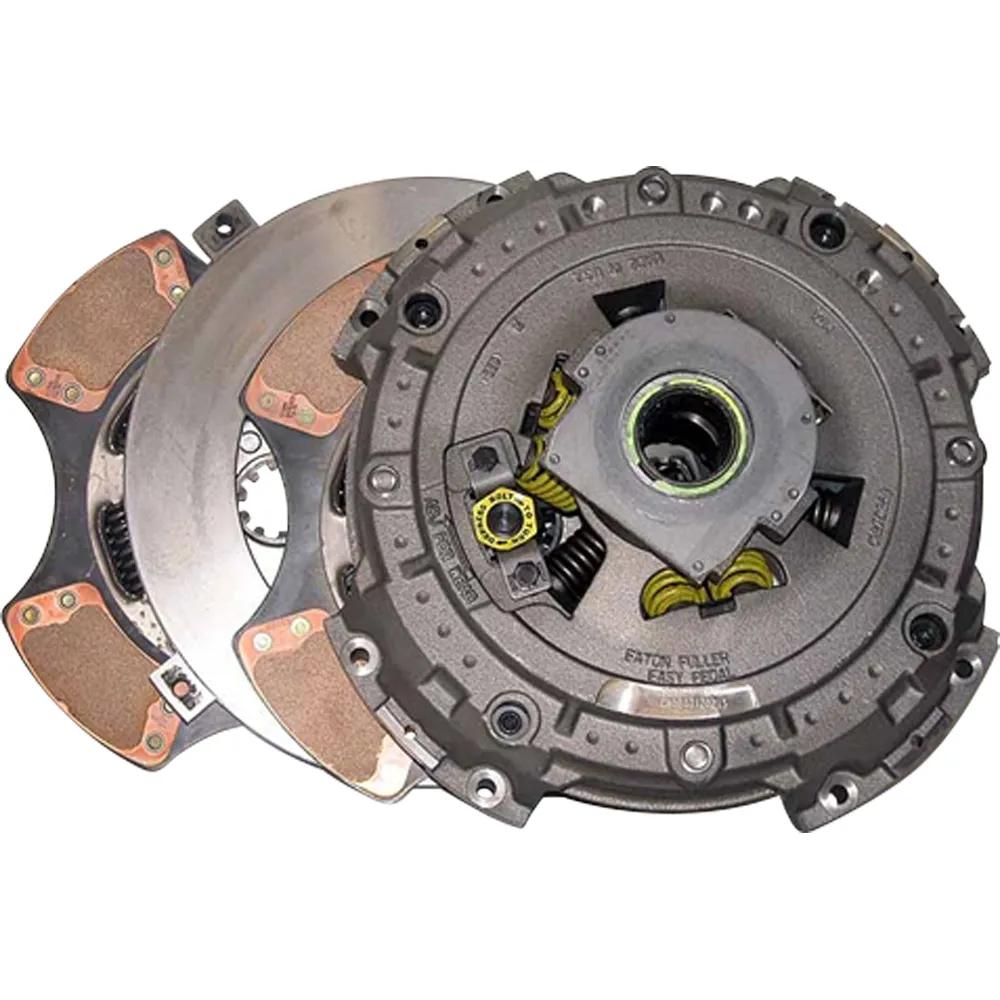

Eaton Heavy-Duty Manual Adjustment Clutch, 2 in. Spline Diameter, 10 Splines, 7 Springs, 1700 ft-lb Torque, 15.5 in Disc
#EAT108925-82AM
Product Overview
Eaton has enhanced the EverTough clutches for superior durability. Available in both self-adjust and manual adjust versions, these clutches feature advanced technology for easier maintenance and reliable performance.Clutch, Manual Adjustment, Heavy-Duty, Manual Transmission, Ceramic Facing, 15.5 in Clutch, 7 Damper Spring Count, 10 in Flywheel Bore Opening, 4 Friction Pad Count, 2.00 in - 10 Input Shaft, 2 Discs, No Pre-Damper, 10 Spline Count, 2 in Spline Dia, 1700 ft lb Torque Rating, 7.25 in Height, 17 in Length, 17 in Width
Features & Benefits
- Three grease zerks for easier maintenance access
- Wider thrust pads increase contact area, compatible with wider fingers of hydraulic release systems, reducing failures due to improper adjustment
- EverTough Self-adjust technology maintains constant adjustment and bearing release position with an easy-to-see wear indicator, eliminating 13 manual adjustments per truck on average
- EverTough manual-adjust clutches feature proven Kwik-Adjust technology for faster, simpler adjustments; Eaton PowerThread adjusting ring prevents seizing and requires approximately half the movement of standard adjusting rings
Specifications
| Dimension de l'embrayage | 15,5 po |
| Nombre de ressorts d'amortisseur (EA) | 7 |
| Équivalent à | 107925-82, 208925-82 |
| Matériau de parement | Céramique |
| Nombre de patins de friction (EA) | 4 |
| Matériau de friction | (4) Boutons Super Céramique par côté |
| Hauteur (pc.) | 7,25 po |
| Liaison hydraulique | Non |
| Taille de l'arbre d'entrée | 2,00 po - 10 |
| L'ensemble inclus | Plaque de pression avec butée de débrayage attachée, (2) disques d'embrayage, plaque centrale |
| Longueur (po) | 17 |
| Number of Discs (EA) | 2 |
| Portfolio Rating | Meilleur |
| Pre-Damper | Non |
| Release Type | Traction |
| Spline Diameter | 2 po |
| Spline Diameter-Spline Count | 2 po (10 Cannelure) |
| Torque Rating (FLB) | 1700 |
| Transmission Type | Manuelle |
| Type | Réglage manuel, robuste |
| UPC | 840379301182 |
| Vehicle Classification Group | Usage intensif |
| Weight | 129 lb |
| Weight (lbs) | 129 |
| Width (in.) | 17 |
| Damper Size | Coaxial |
| Damper Spring Count | 7 |
| Flywheel Bore Opening | 10 po |
| Friction Pad Count | 4 |
| Height | 7,25 po |
| Length | 17 po |
| Number of Discs | 2 |
| Spline Count | 10 |
| Torque Rating | 1700 pi-lb |
| Width | 17 po |
| Product Category | Embrayage |
Interchanges & Equivalent parts:
| 108925-82AM |
| 108925-82B |
| 155698YCB4CXFT7 |
| AN155698SB9 |
| CCC108925-82AM |
| CCC208925-82 |
| EZ208925-82B |
| 10892582AM |
