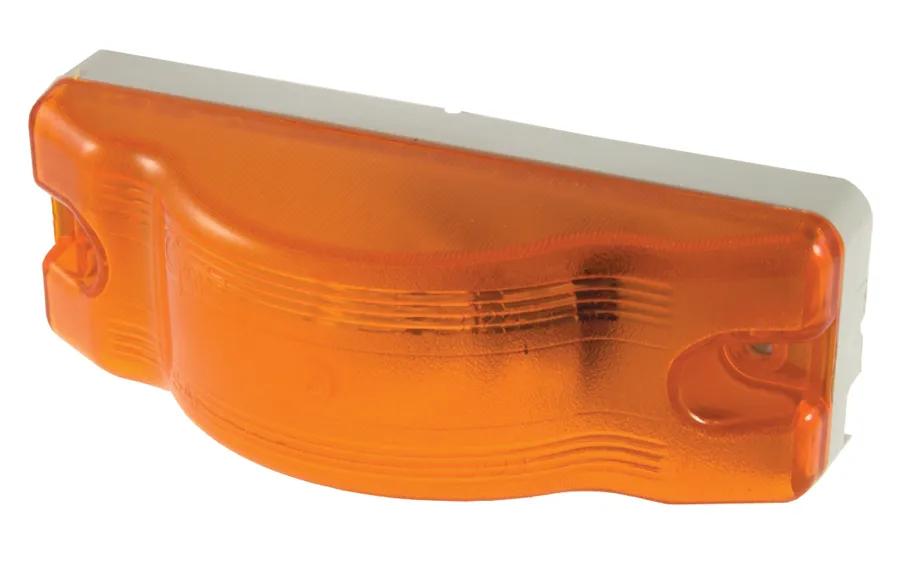

Side Turn Signal Marker Lamp, Amber, Rectangular, Polycarbonate, Male Pin, Sentry Sealed
#GRO53063
Product Overview
High impact base with male pin termination, accepts UBS pigtail. Not recommended for rear of vehicles in padded dock applications. Yellow lens exceeds SAE J914 Nov. '87 standard. Manufactured to meet or exceed OEM specifications in function, form, and fit.Side Turn Marker Lamp, Sentry Sealed, 1016 Bulb, Male Pin Connection Type, Screw Mounting, White Housing, Amber Lens, Amber Light Output, Polycarbonate Lens, Polycarbonate Housing, 21, 6 CP Candle Power, 0.6 to 1.3 A Current Rating, E2, P2 Light Function, Rectangular, Exceeds SAE J914, FMVSS 108 Standards, 12 V, 1 Year Warranty
Features & Benefits
- Compatible with UBS pigtail for convenient setup
- High-impact base ensures durability and longevity
- Features male pin connection for secure installation
- Sentry lamp exclusive to Grote Industries for top-notch performance
- Manufactured to meet or exceed OEM specifications in function, form & fit
- Exceeds SAE J914, Nov. '87
- Not recommended for rear of vehicles in padded dock applications
Specifications
| Bulb Type | 1016 |
| Connection Type | Male Pin |
| Contents | Sentry Sealed Marker Side Turn Lights |
| Current Major | 2.1 amp |
| Current Minor | 0.49 amp |
| Height | 2-13/32 in |
| Housing Color | White |
| Length | 2-13/32 in |
| Lens Color | Amber |
| Mounting Type | Side Mount, Screw |
| Plug Side One | PL-3, Female |
| Plug Side Two | No Plug |
| Position | Side |
| Reflectorized (Y/N) | No |
| Shape | Rectangular |
| Size | 2 in |
| Standards | FMVSS 108, Exceeds SAE J914 Nov. '87 |
| Technology | Incandescent |
| Type | Turn Signal |
| VMRS Code | 034-003-097 |
| Voltage Rating | 12 V |
| Warranty | 1 Year |
| Width | 5-15/16 in |
| Candlepower | 21, 6 CP |
| Current Rating | 0.6 amp to 1.3 amp |
| Light Function | E2, P2 |
| Light Output Color | Amber |
| Product Line | 22 Series |
| Product Category | Side Turn Marker Lamp |
Interchanges & Equivalent parts:
| 253-5657 |
| 2535657 |
| 4091A |
| 4094A |
| 52863 |
| 53063-3 |
| 530633 |
| GRO52863 |
| GRO53063-3 |
| GRO530633 |
| MNC253-5657 |
| 22002Y3 |
| 22004Y3 |
| 22202Y3 |
| 3095861 |
| 4095AS1G |
| 4091AS1G |
| 53063-GL |
| GR-53063 |
| GRO 53063 |
| GRO53063 |
| GRT53063 |
| ZBJ53063 |
| ZBJD53063 |
| GR53063 |
| 2464A |
| 2757 |
| 5364A |
| 7376-53063 |
| ABP N54A B9007A |
| GT53063 |
| LT560Y |
| M305A |
| TKL2150A |
| TKL22002Y |
| TKL22004Y |
| TKL22006Y |
| TKL22202Y |
| M343A |
| PTSM343A |
| 310252 |
| 34004116 |
| SLH34004119 |
| 728202 |
| 1592PT |
| 1596D |
| 5504PT |
| 422282 |
| 422283 |
| 47TD |
| 53063 |
| 22202Y |
| 571LG291A |
| PT2200A |
