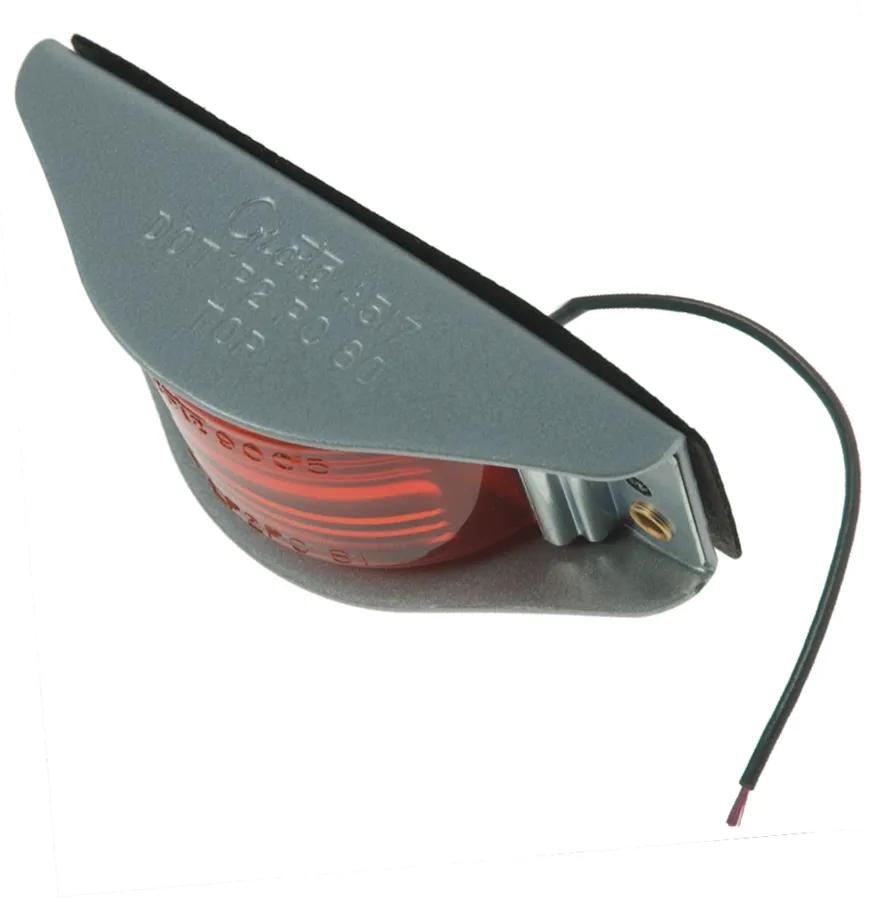

Marker Clearance Light, Red, Rectangular
#GRO45172
Product Overview
Seal-Tight Expanded Rubber Gasket, Steel Housing For Additional Lamp Protection, 2 Or 4 Hole Mounting For Easy Retrofits, Flat Back, No Need For Lamp Socket Hole, Meets PC Function Only When Mounted At A 45 Deg Angle
Features & Benefits
- Steel housing enhances lamp protection
- Meets pc function when mounted at a 45° angle
- Seal-tight expanded rubber gasket for secure fit
- Two- or four-hole mounting for convenient retrofits
- Flat back design eliminates need for lamp socket hole
- Manufactured to Meet or Exceed O.E.M. Specifications in Function, Form & Fit.
Specifications
| Amps | 0.33 amp |
| Color | Red |
| Common Size | 1 in (2.54 cm) |
| Contents | Marker Clearance Light |
| Current Major | 0.27 amp |
| Depth | 1-1/2 in (3.81 cm) |
| Diamond Shell (Y/N) | Yes |
| Function | PC,P3,P2 |
| Height | 2 in (5.08 cm) |
| Housing Color | Silver |
| Kit (Y/N) | No |
| Lamp Screw Hole Diameter | 7/32 in (0.56 cm) |
| Length | 5-1/4 in (13.34 cm) |
| Lens Material | Acrylic |
| Mount Type | Side Mount |
| Number Of Wires | 1 |
| Plug Side One | PL-2 (Stripped End) |
| Reflectorized (Y/N) | No |
| Series | 26 Series |
| Shape | Rectangular |
| Standard | FMVSS 108 |
| Technology | Incandescent |
| Type | Marker Clearance Light |
| Volt | 12V |
| Width | 2 in (5.08 cm) |
| Wire Gauge | 18 ga |
| Wire Length | 3 in (7.62 cm) |
Interchanges & Equivalent parts:
| 45172 |
| 119R |
| 252-45172 |
| 25245172 |
| MNC252-45172 |
| 055-00-522 |
| 088-00-322 |
| 1105S1G |
| 26315R3 |
| 2631R |
| 45172GR0 |
| 7376-45172 |
| 81765 |
| 84078 |
| 840787 |
| GR45172 |
| GRO 45172 |
| GRO45172 |
| GRT45172 |
| GT45172 |
| LT534R |
| M119R |
| PT2605R |
| 11013 |
| 11053 |
| 1117 |
| 1117A |
| ZBJ45172 |
| ZBJD45172 |
| MC82RB |
| MC82RBP |
| 8-610 |
| 1755M |
| 1805KT |
| 50-15200R3 |
| 1101 |
| 1105 |
| 26315R |
