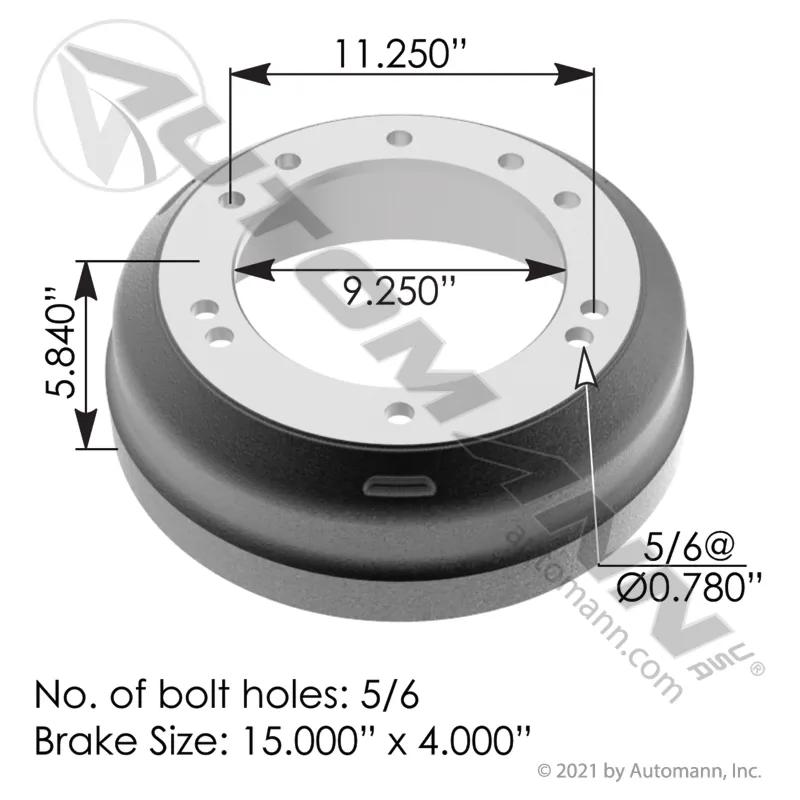

Brake Drum, 15 in x 4 in, 5 & 6 holes
#MZB151.5409BA
Specifications
| Application | Universel |
| Épaisseur de la plaque arrière | 1/2 po (1,27 cm) |
| Diamètre du cercle de perçage | 11-1/4 po (28,58 cm) |
| Trou de boulon (nombre) | 5 et 6 |
| Largeur de segment de frein | 4 po (10,16 cm) |
| Dimension du frein | 15 po x 4 |
| Diamètre de la surface du frein | 15 po (38,1 cm) |
| Surface de freinage plate | 4-1/2 po (11,43 cm) |
| Bridge Width | 5 po, 6 po |
| Depth | 5-27/32 po (14,83 cm) |
| Drum Mounting | Intérieur |
| Drum Type | ABG |
| Dust Shield Recess Depth (C) | 25/32 po (1,99 cm) |
| Dust Shield Recess Diameter (B) | 15-51/64 po (40,13 cm) |
| Height | 8-5/32 po (20,73 cm) |
| Hole Size | 25/32 po (1,99 cm) |
| Maximum Diameter | 15-1/8 po (38,42 cm) |
| Overall Depth | 5-27/32 po (14,85 cm) |
| Overall Diameter | 17-13/32 po (44,22 cm) |
| Pilot Diameter | 9-1/4 po (23,5 cm) |
| Sidewall Offset (N) | 1-19/64 po (3,3 cm) |
| Squealer Band Width (K) | 1-23/32 po (4,37 cm) |
| Type | Moulé |
| VMRS Code | 013-017-006 |
| Weight | 82,8 lb (37,55 kg) |
| Width | 4 po (10,16 cm) |
Interchanges & Equivalent parts:
| 03122104002 |
| 151.5409BA |
